Lifitng and material handling solutions

Solutions for industrial lifting and material handling

Tesis Engineering offers a complete range of solutions for lifting and material handling.

We have engineered and implemented solutions for the most varied applications, from systems to assist workers in handling, loading, unloading and positioning of materials, to the integration with machines, continuous cycle production lines or process automation.

We assist our customers in choosing the best possible solution: if you think that a standard solution cannot meet your needs, our team of experts can design a customized solution.

Check out some of the solutions we have designed to meet particular requirements of our customers: a small example of what we can do for you and perhaps an idea for the solution you are looking for!

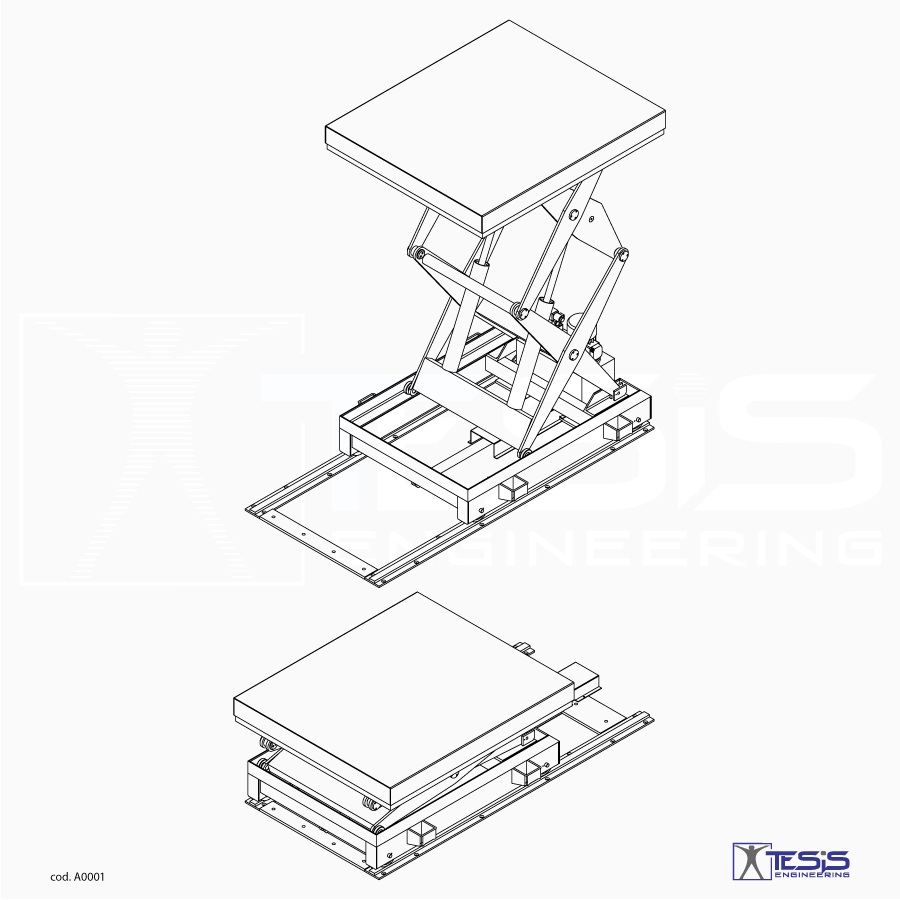

A0001

XH-TO-15-140-120-150-65
Self-propelled lft table with hydraulic traverse: load capacity 1,500 kg; size 1400x1200; vertical travel 1500; H min. 650mm.
Button

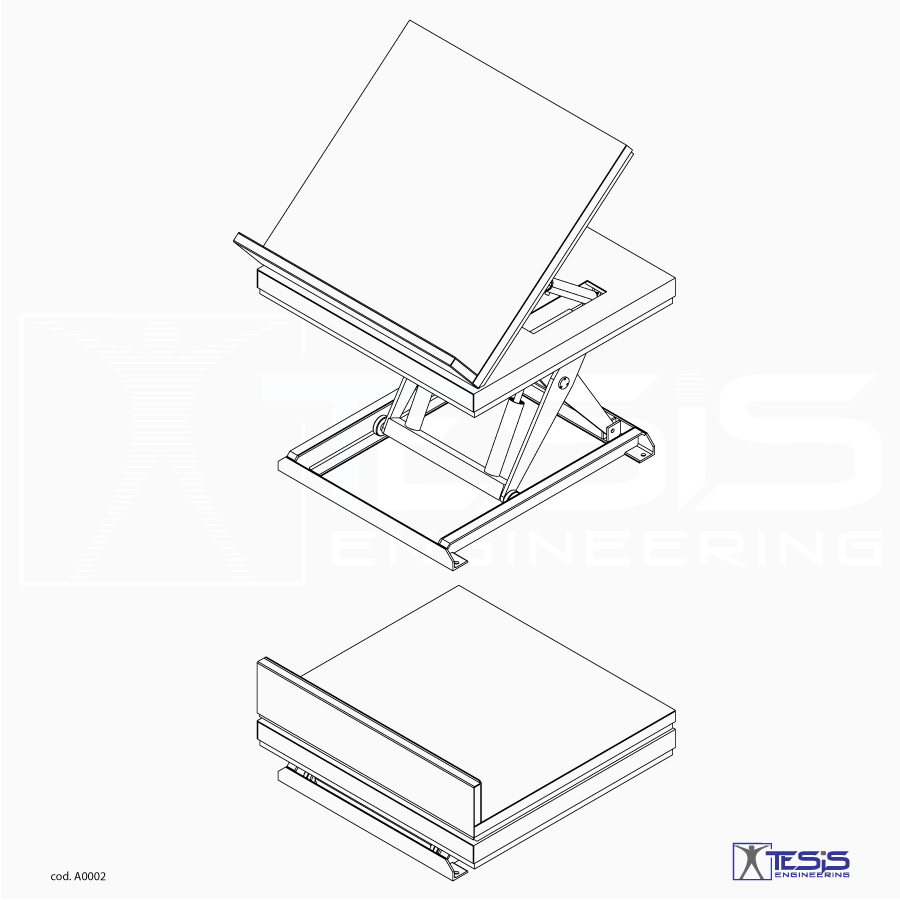

A0002

XN-PRB-15-130-145-82-38
Scissor lift and tilt table: load capacity 1,500 kg; size 1300x1450mm; vertical travel 820mm; H min. 380mm.
Button

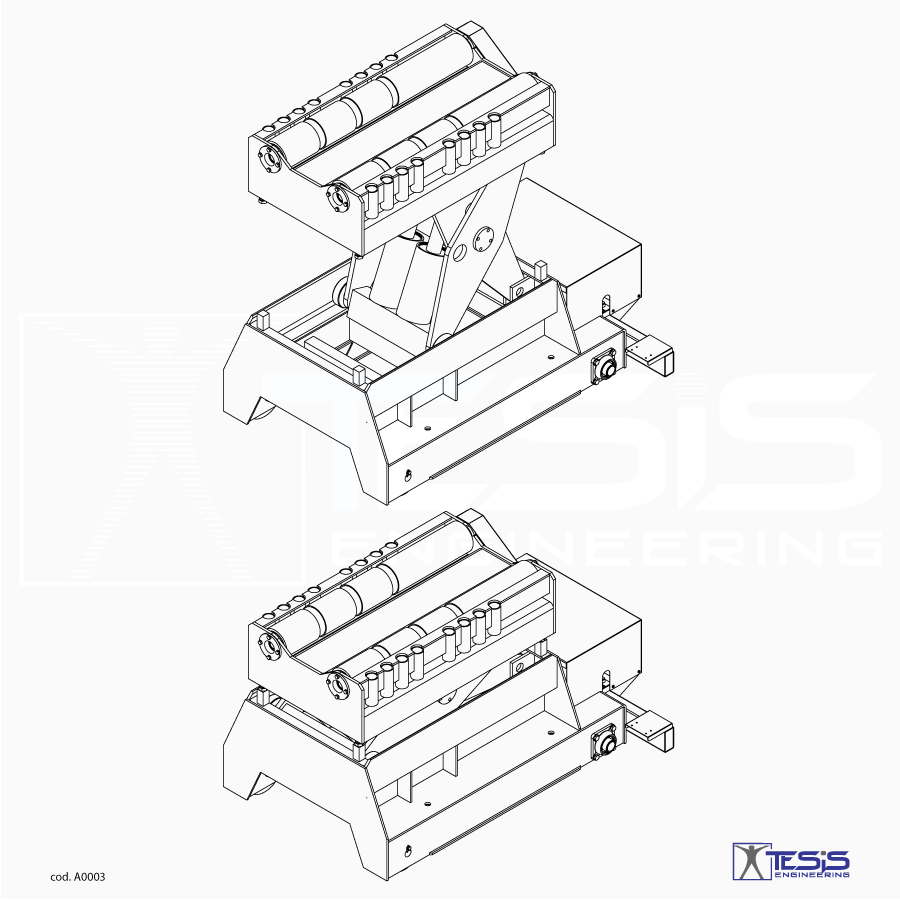

A0003

XN-TE-PRU-100-128-75-107-64
Self-propelled lift table with electromechanical traverse and rollers: load capacity 10,000 kg; size 1280x750mm; vertical travel 1070 mm; H min. 640mm.
Button
A0004

XH-MC-50-460-200-500-130-CA2-PPL
Goods platform lift: load capacity 5,000 kg; size 4600x2000mm; vertical travel 5000 mm; H min. 1300mm.
Button

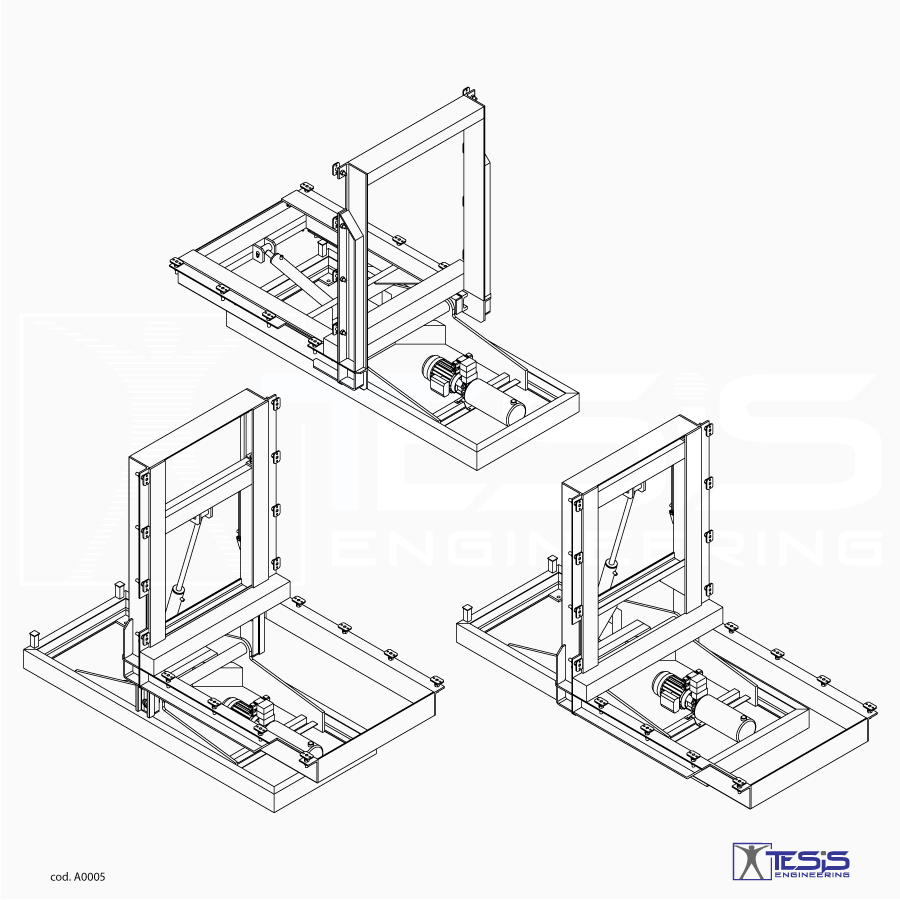

A0005

L90-PTO-20-164-163-45-35-45
90° tilt and lift equipment: load capacity 2,000 kg; size 1640x1630mm; lifting 450 - 350 mm; H min. 450mm
Button

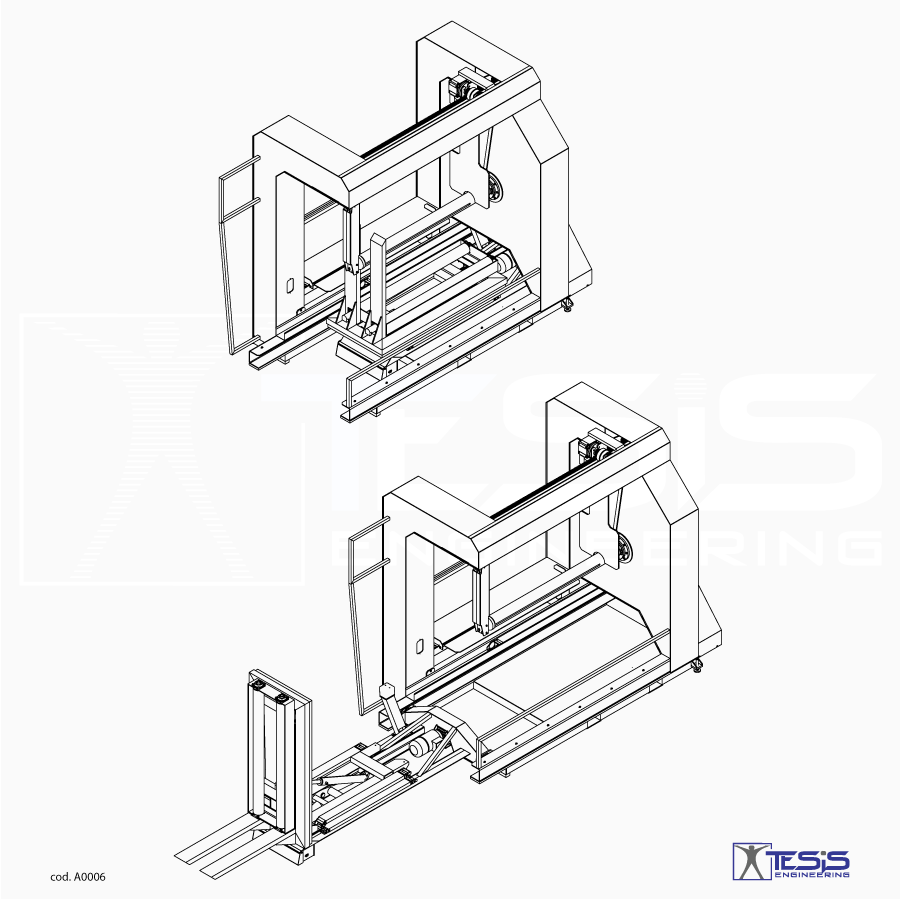

A0006

WINDER WITH ROLL UNLOADING AND PALLETIZING SYSTEM
Button

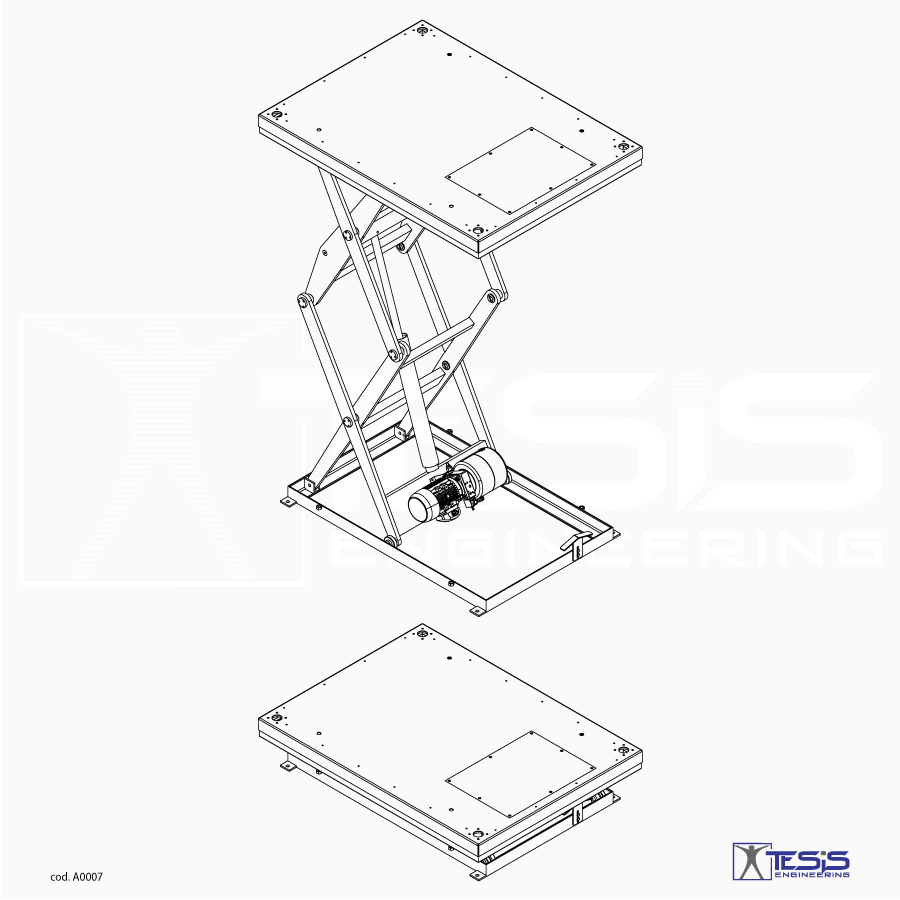

A0007

XHH-6-150-112-200-29
Double scissor lift table: load capacity 600 kg; size 1500x1120mm; vertical travel 2000mm; H min. 290mm.
Button

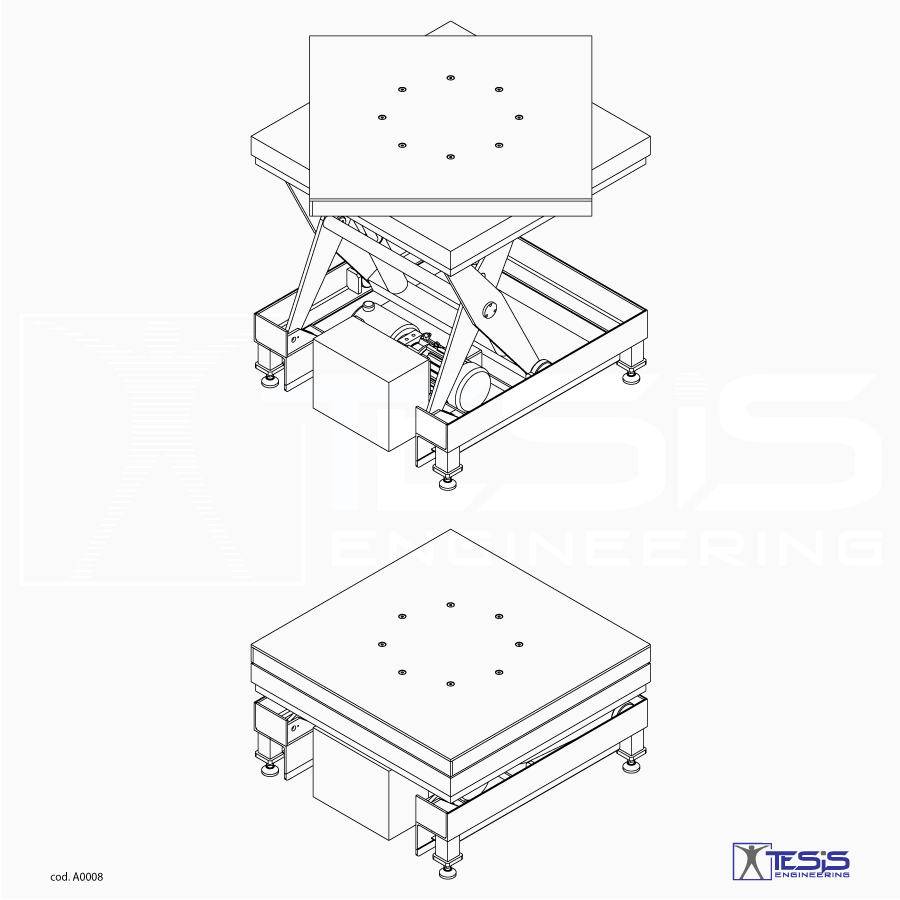

A0008

XN-PRE-15-100-100-60-54
Scissor turntable lift: load capacity 1,500 kg; size 1000x1000mm; vertical travel 600mm; H min. 540mm.
Button

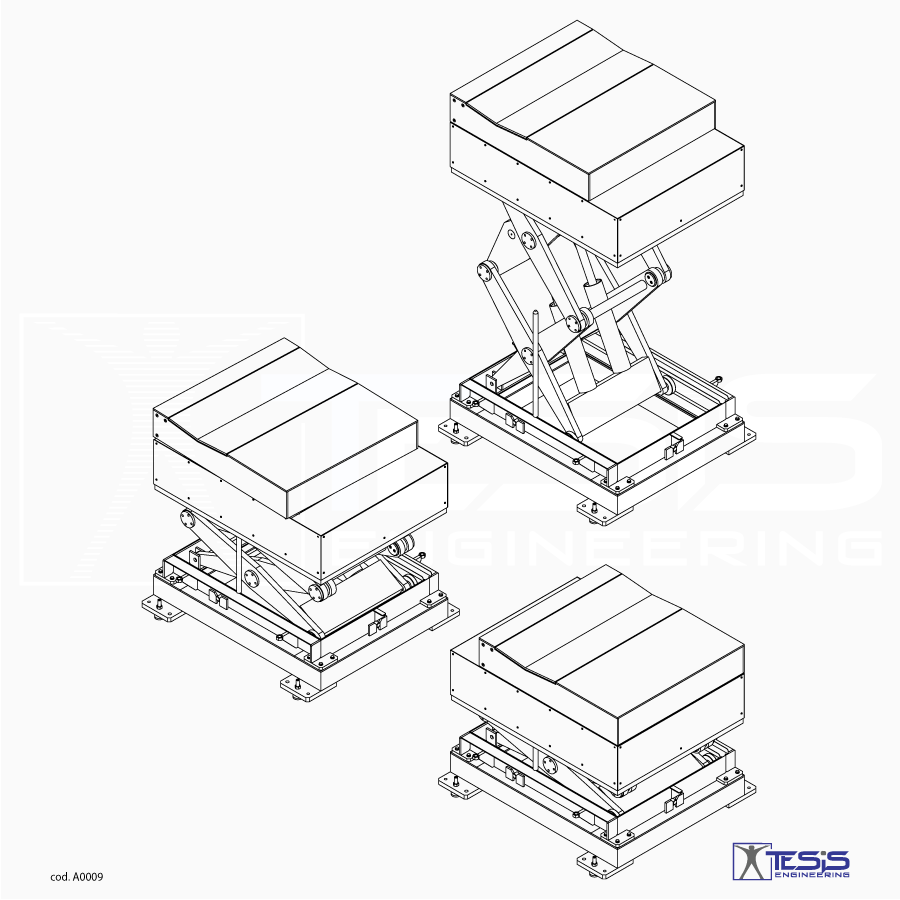

A0009

XH-PTO-PGR-PTTM-50-145-110-120-131
Scissor lift for roll handling. cradle platform top with 3 movements: hydraulic longitudinal shifting, manual transversal shifting and rotation.
Load capacity 5.000 kg; size 1450x1100 mm; vertical travel 1200 mm; H min 1310 mm.
Button

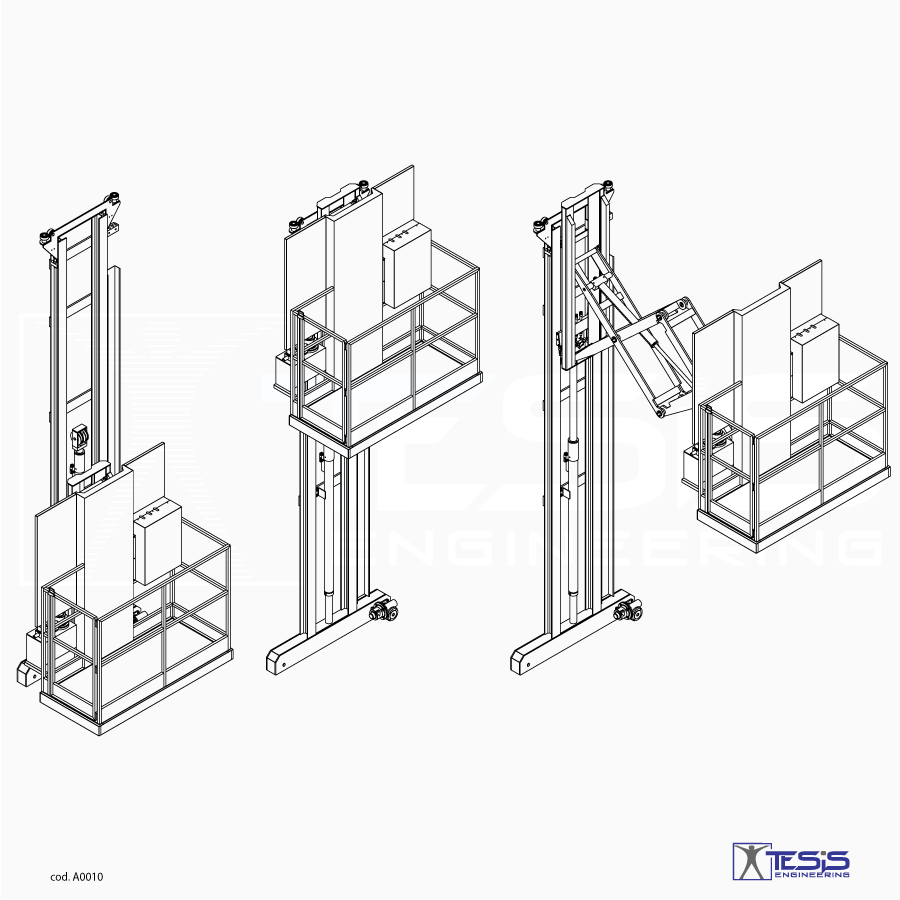

A0010

TRANSLO-3-160-70A200-300-20
Rail-guided self-propelled work platform: Load capacity 300 Kg;
platform size dim. 1600x700xh2000mm; vertical travel 3000mm;
Button

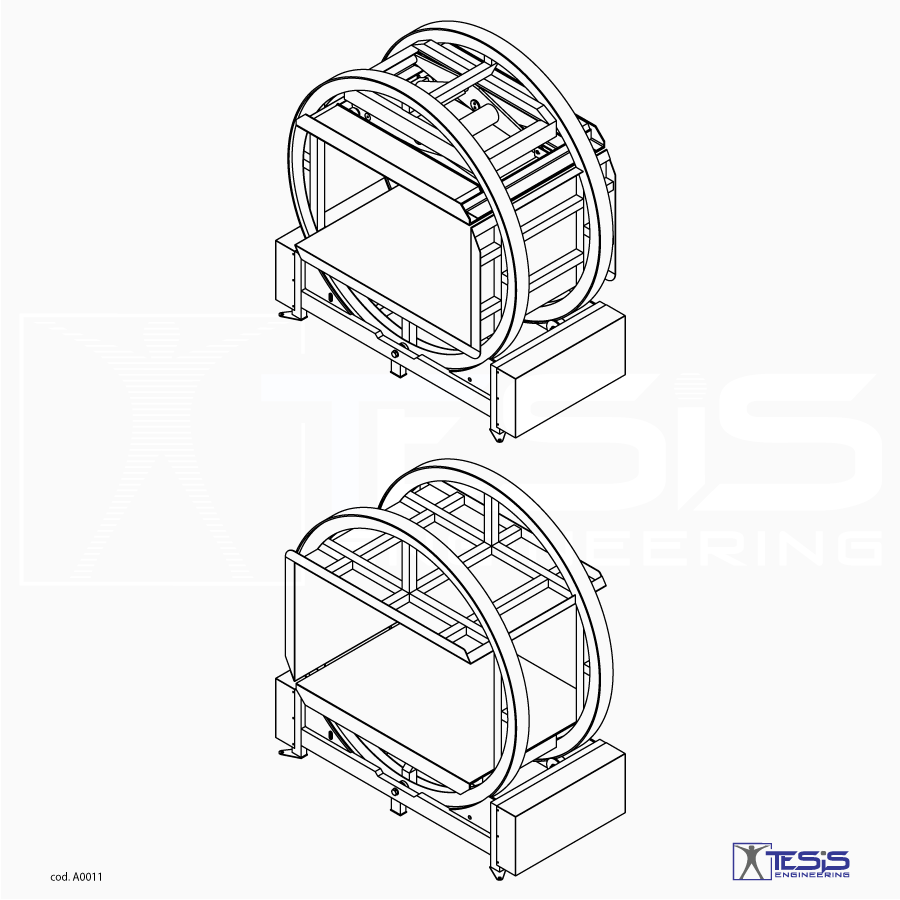

A0011

L180-35-180-150-100-75
Pile turner: 180° rotation; load capacity 3.500 kg.; platform size 1800x1500mm; lift 1000mm; H min. 750mm.
Button

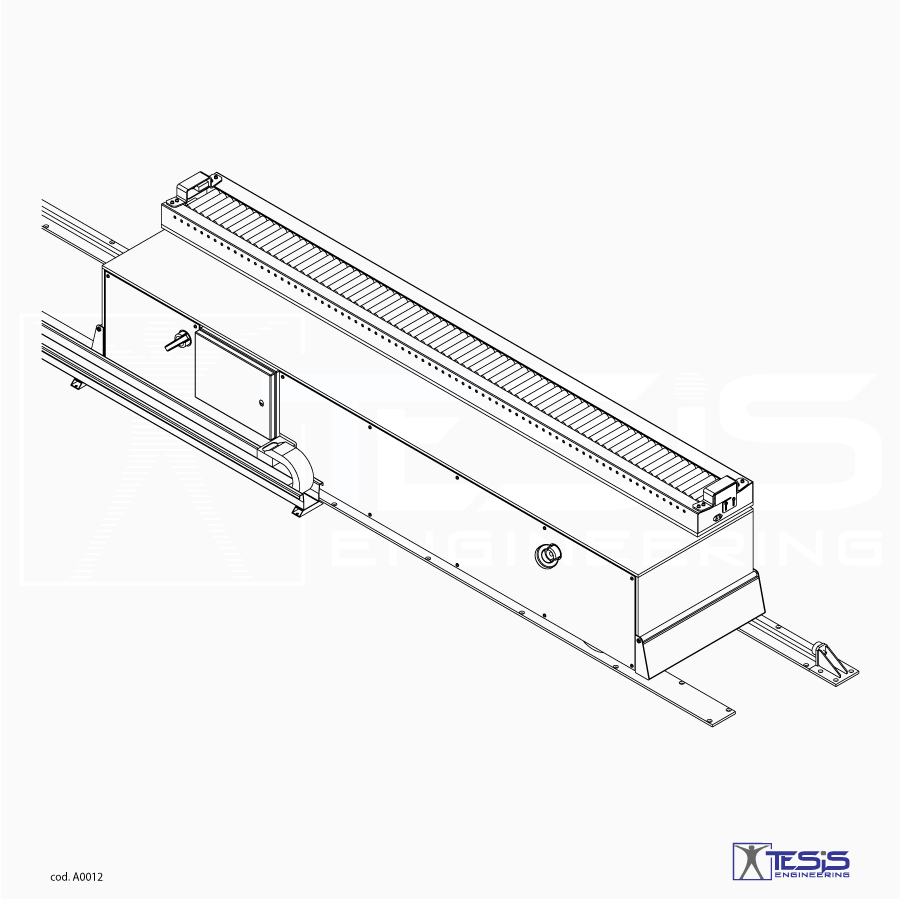

A0012

NTE-PRU-40-280-65-60
Rail-guided self-propelled shuttle with gravity roller conveyor: load capacity 4,000 kg; size 2800x650mm; H min. 600mm.
Button

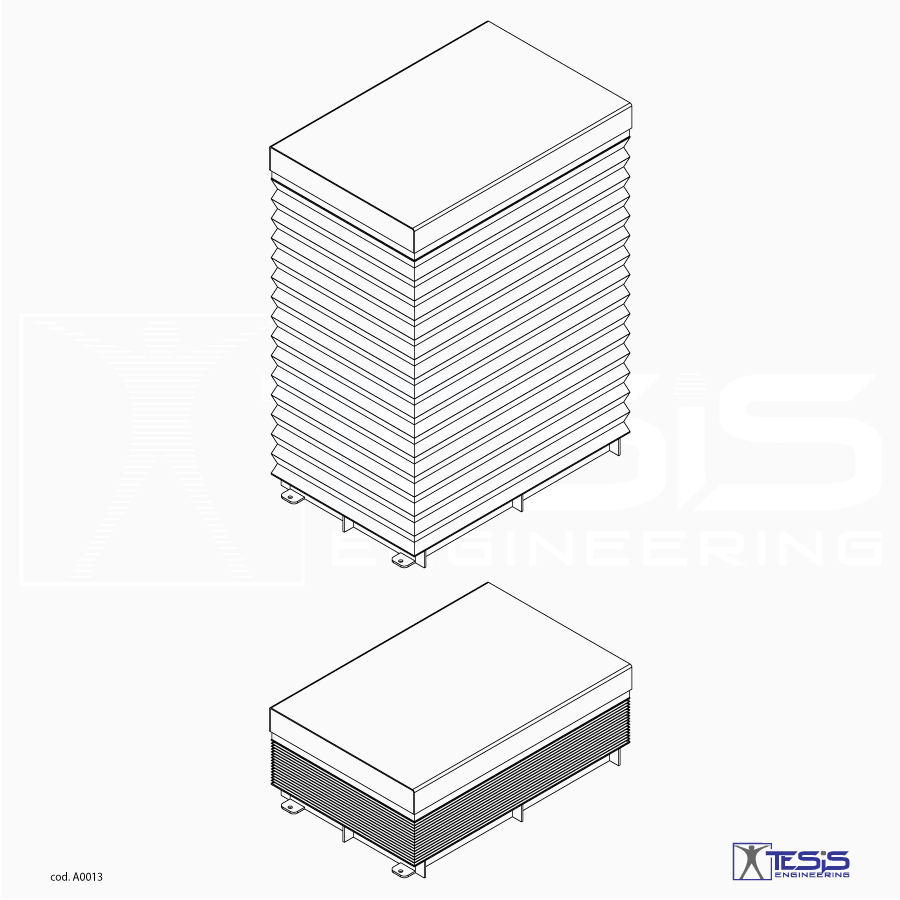

A0013

XH-AGV-15-120-80-120-45-SF4
Automated Guided Vehicle double scissor lift table: load capacity 150 kg; size 1200x800 mm; vertical travel 1200mm; H min. 450mm.
Button

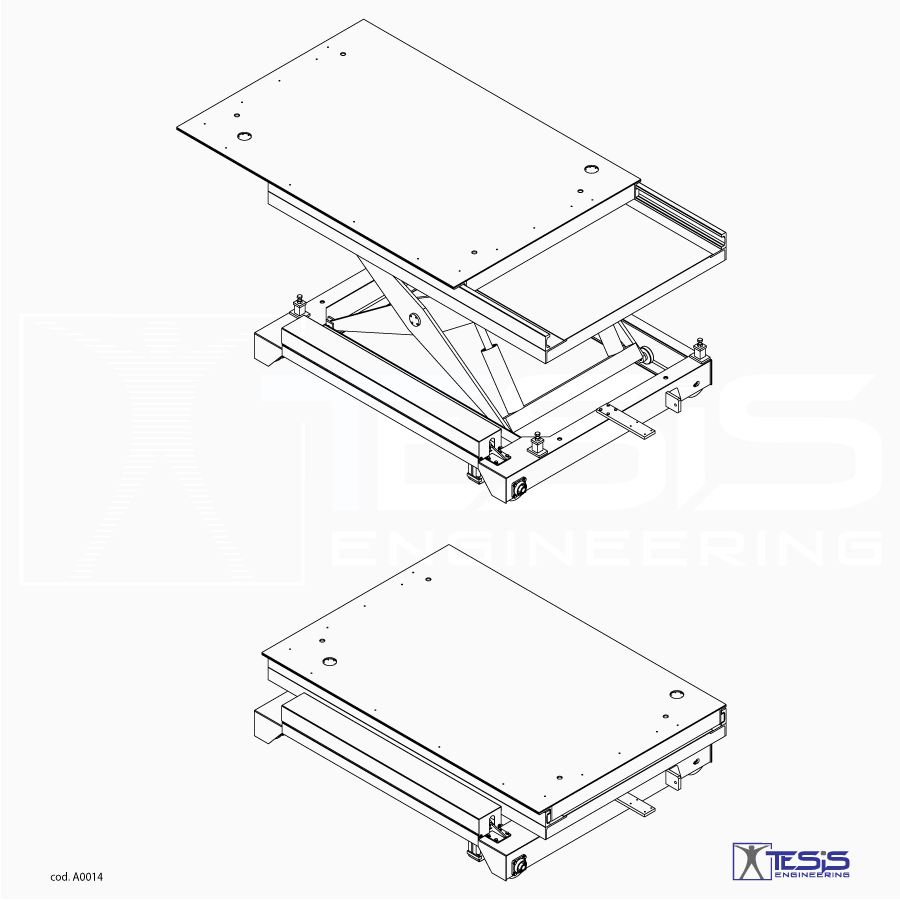

A0014

XN-TE-PTO-35-260-175-80-55
Self-propelled lift table with powered shifting top platform: load capacity 350 kg; size 2600x1750mm; vertical travel 800 mm; H min. 550mm.
Button

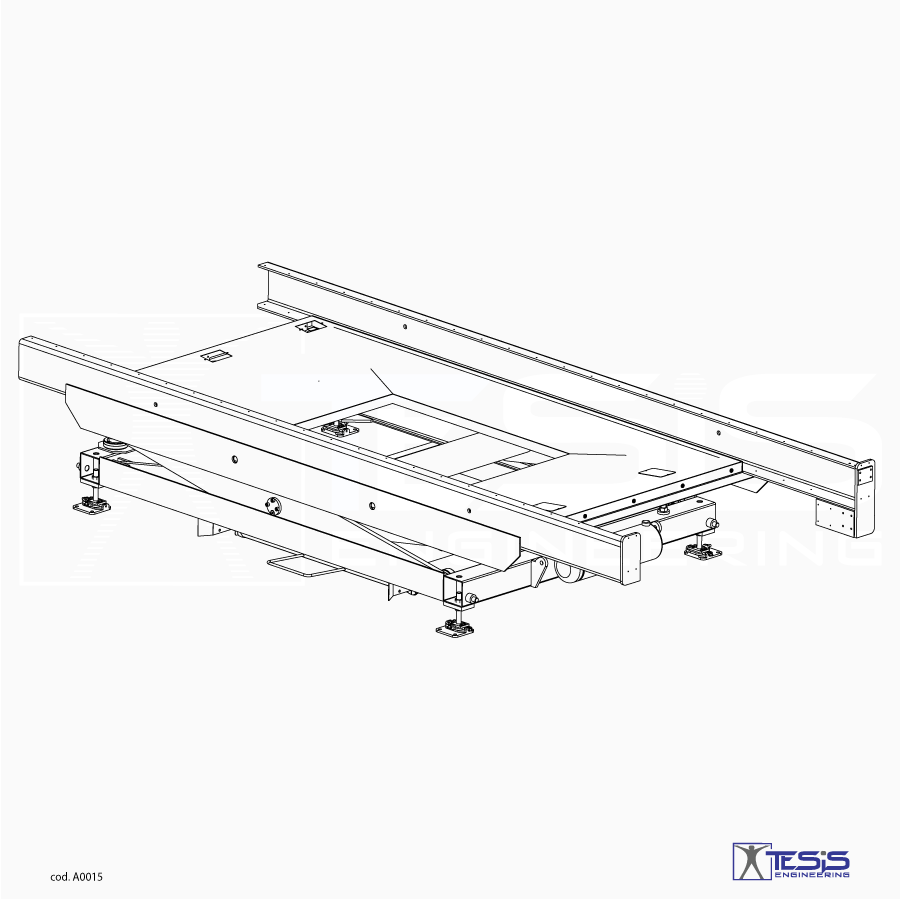

A0015

XN-4015
Pallet changer lift table with hopper and scrap removal trolley
Button

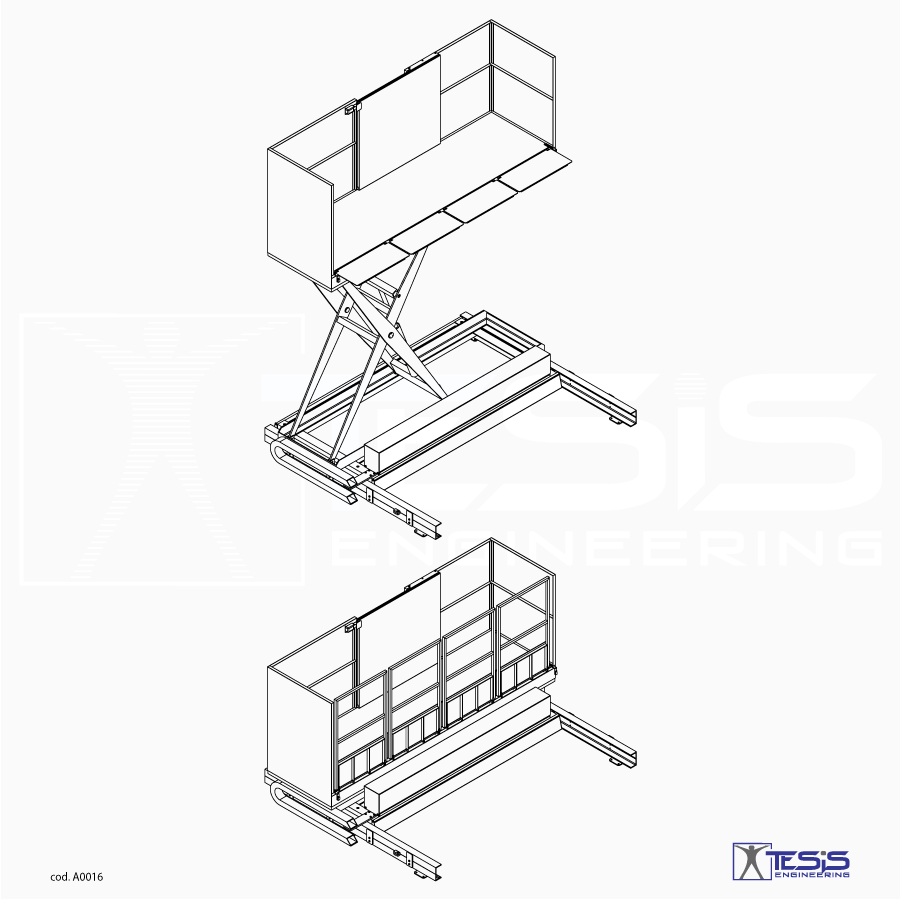

A0016

XN-TE-5-315-90-215-50-PL3-RA1-CM-FLM
Self-propelled work platform with removable railings: load capacity 500 kg; size 3150x900 mm; vrtical travel 2150mm; H min. 500mm.
Button

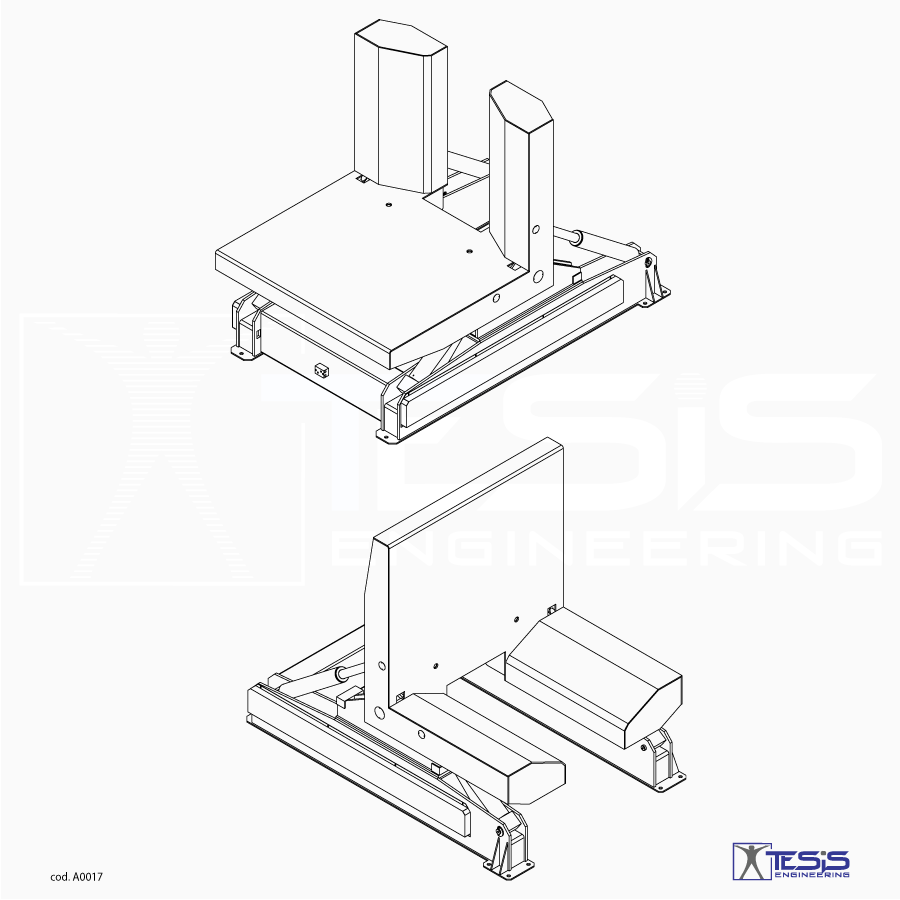

A0017

L90C-250-230-150-220-125
90° tilter: load capacity 25,000 kg; size 2300x1500mm.
Button

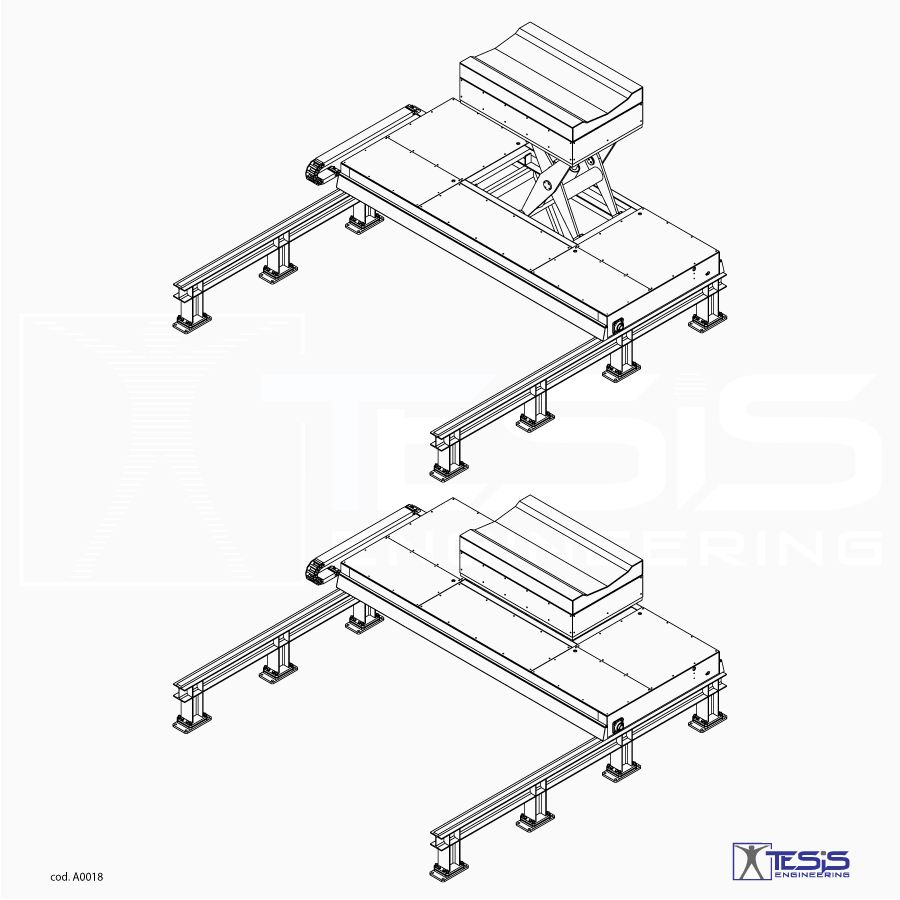

A0018

XN-TE-40-160-100-90-87-LIBRA
Special handling equipment with cradle top lift table and powere moving flooring: Load capacity 4.000 kg.

Button

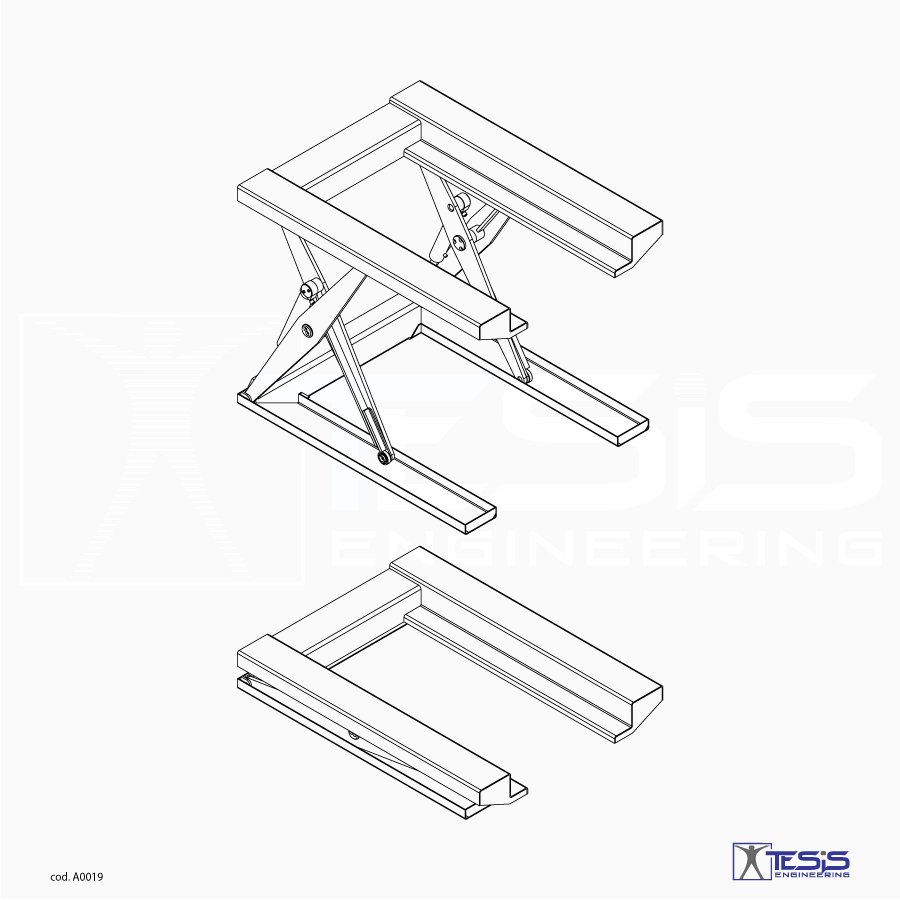

A0019

XB-12-170-129-110-8
Pallet scissor lift table with ''U'' top: load capacity 120 kg; size 1700x1290mm; vertical travel 1100mm; H min. 80mm.
Button

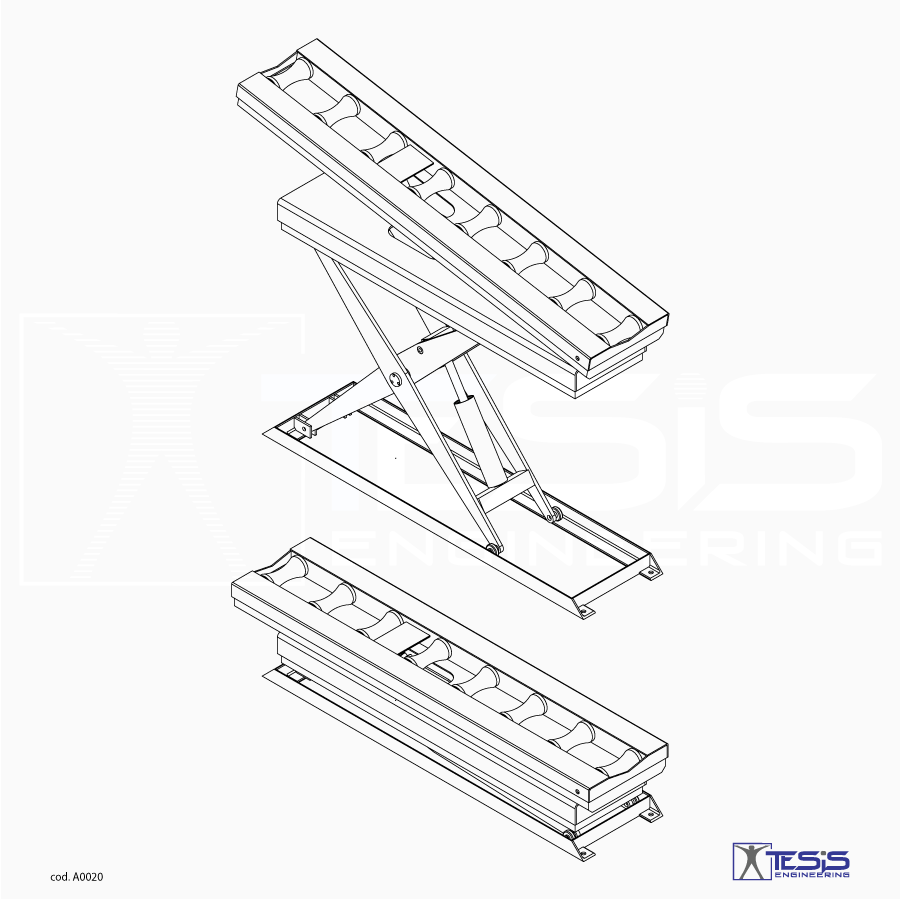

A0020

XN-PRB-PRU-5-180-40-84-31
Tilt roller top lift table : load capacity 500 kg; size 1800x400mm; vertical travel 840mm; H min. 310mm
Button

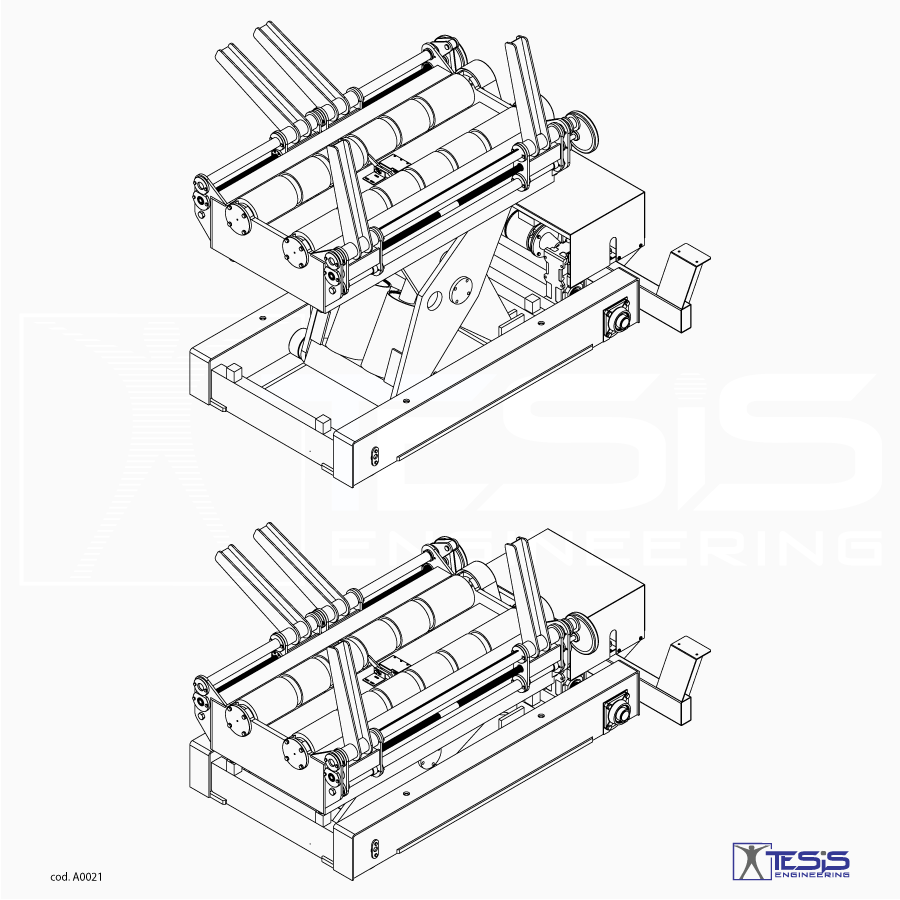

A0021

XN-TE-PRU-2BO-200-180-90-74-80
Self-propelled coil trasnfer car with motorized roller top and powered coil stop devices: load capacity 20,000 kg; size 1800x900mm; stroke 740mm; H min. 800mm.
Button

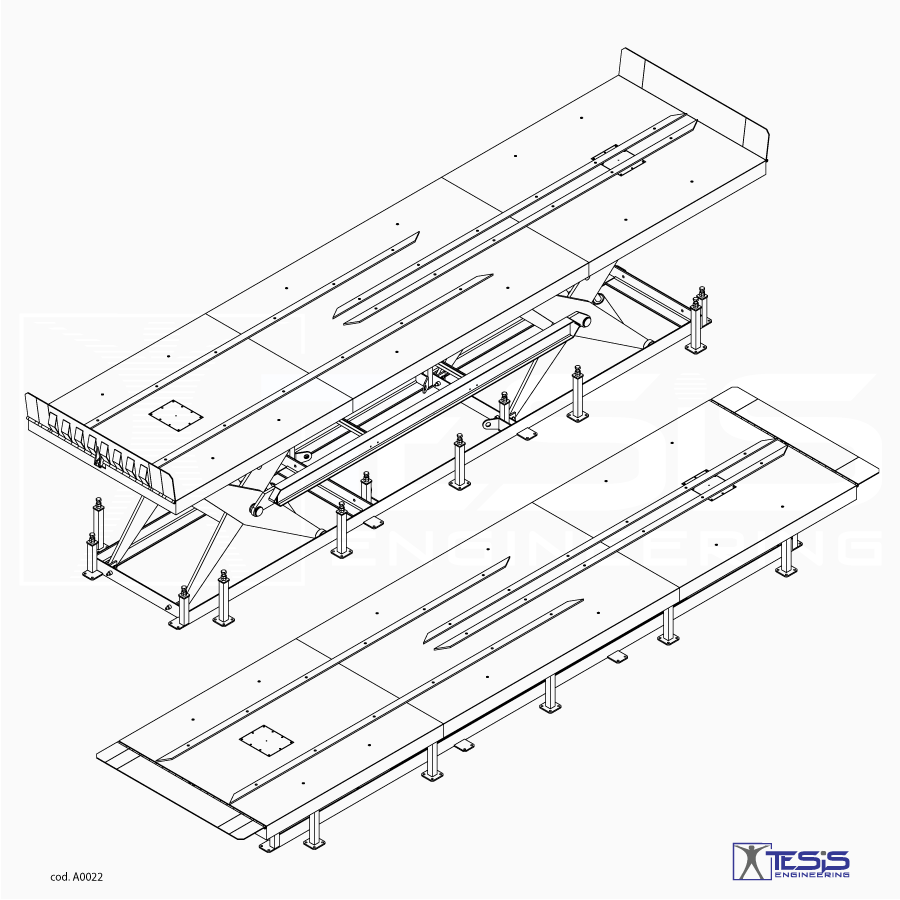

A0022

XL-2FLO-105-1000-250-150-80
Vehicle loading/unloading tandem scissor lift table with powered approch ramp: load capacity 10,500 kg; size 10000x2500mm; stroke 1500 mm; H min. 800mm.
Button

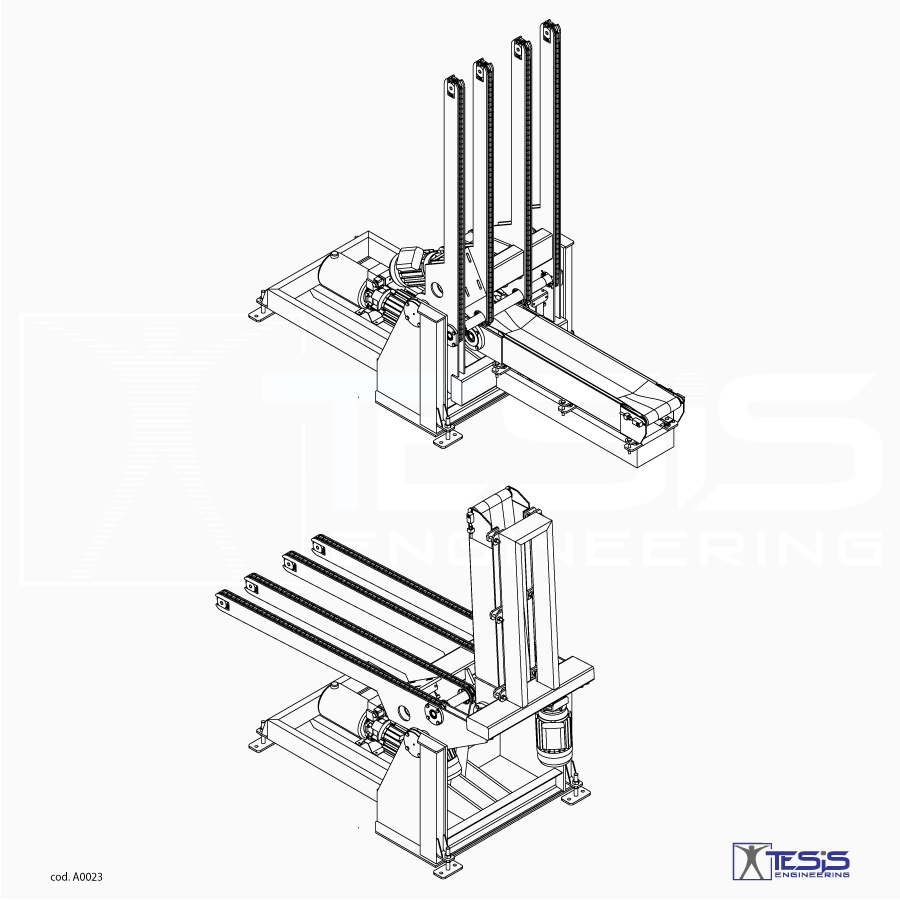

A0023

L93-TRN-TRC-06-154-102-84-90
90° tilter with tansfer chain and belt conveyors: load capacity 600 kg
Button

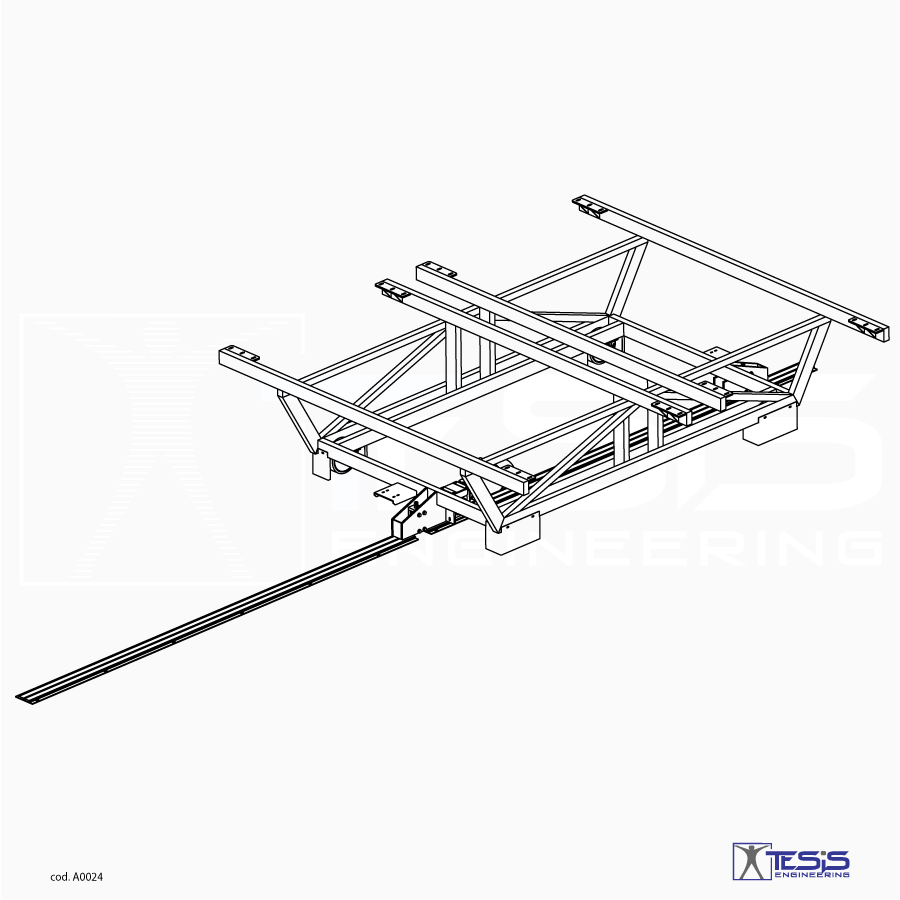

A0024

POWERED RAIL GUIDED CART
Button

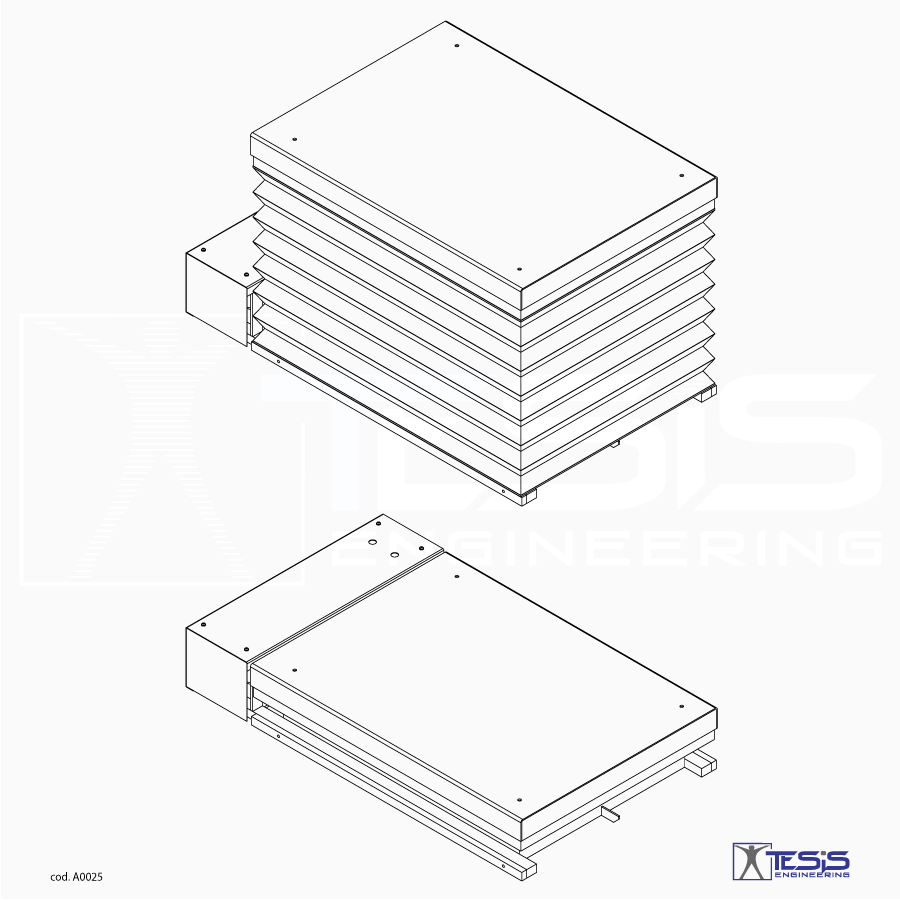

A0025

XN-AGV-10-110-80-55-21-SF4
Automated Guided Vehicle scissor lift table: capacity 1,000 kg; size 1100x800mm; stroke 550mm; H min. 210mm.
Button

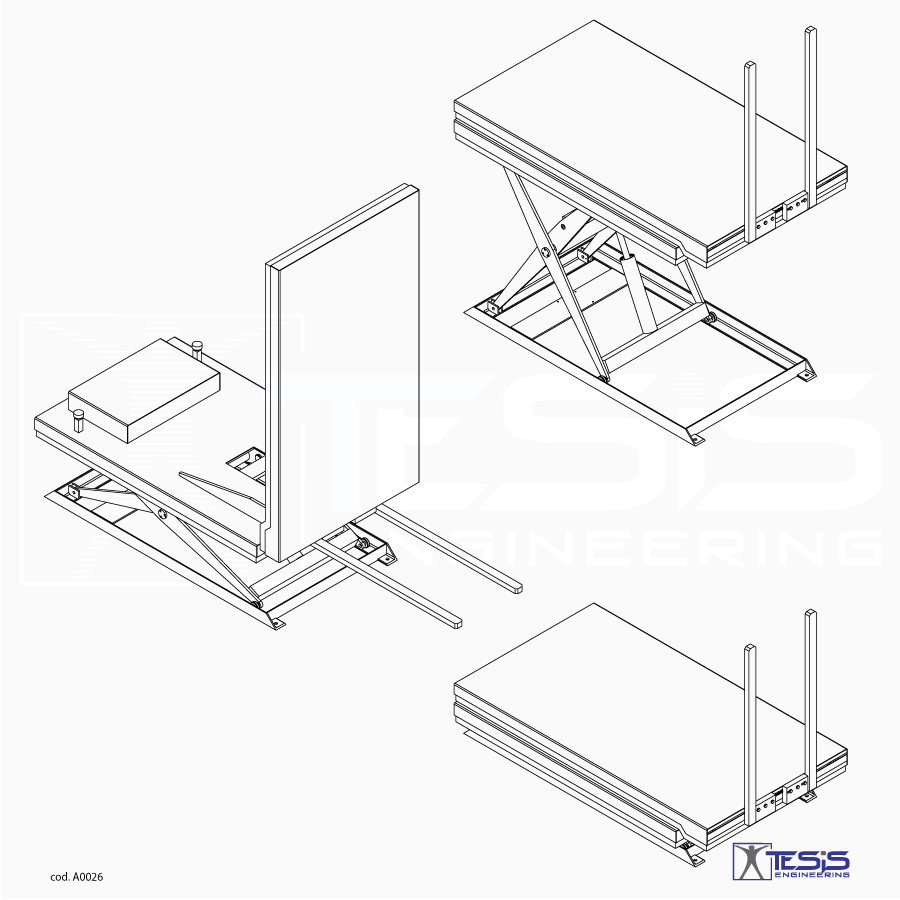

A0026

XN-PRB-2-180-100-100-34
Scissor lift and tilt table with adjustable forks: load capacity 200kg. size 1800x1000mm; vertical travel 1000 mm; H min. 340 mm.
Button

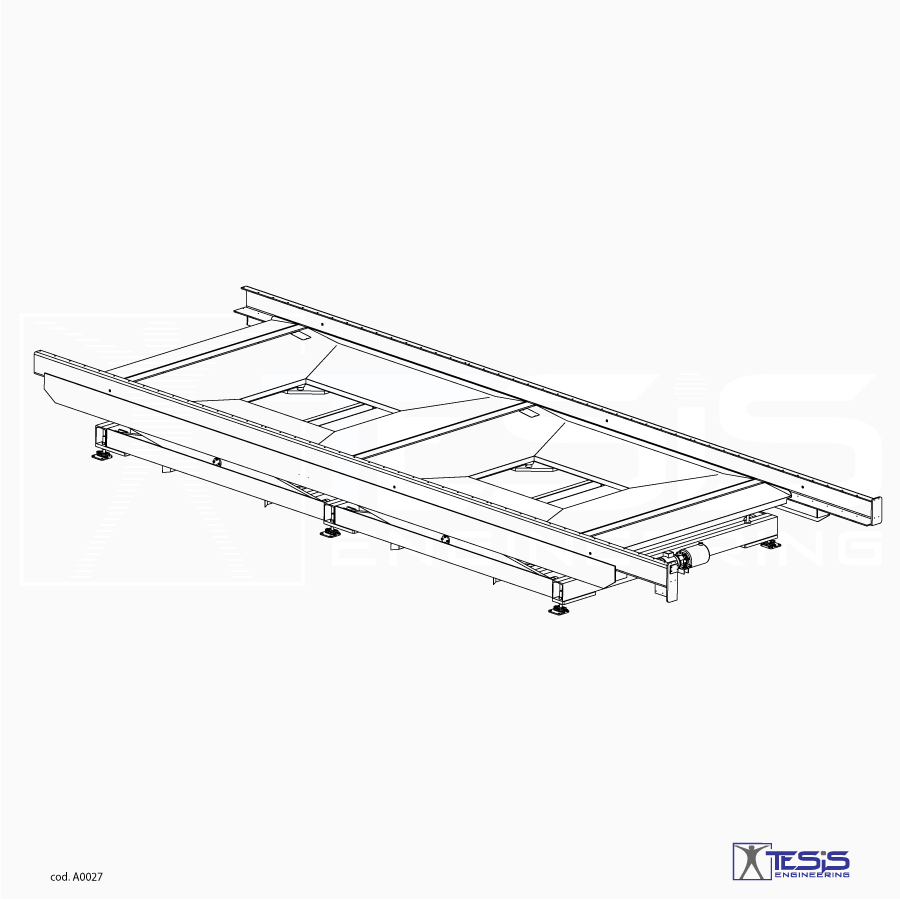

A0027

XL-8025
Pallet changer lift table with double hopper and scrap removal trolley
Button

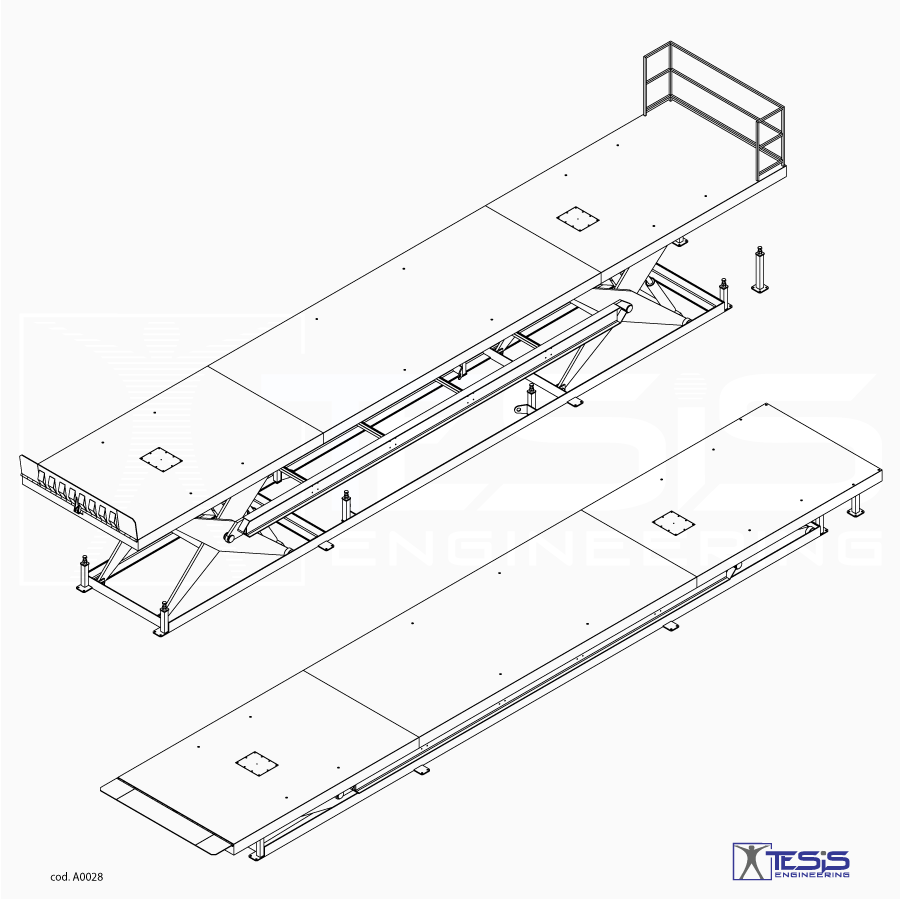

A0028

XL-120-1400-250-150-90-FLO-RA1
Vehicle loading/unloading tandem scissor lift table with powered approch ramp: load capacity 12,000 kg; size 14000x2500mm; vertical travel 1500mm; H min. 900mm.
Button

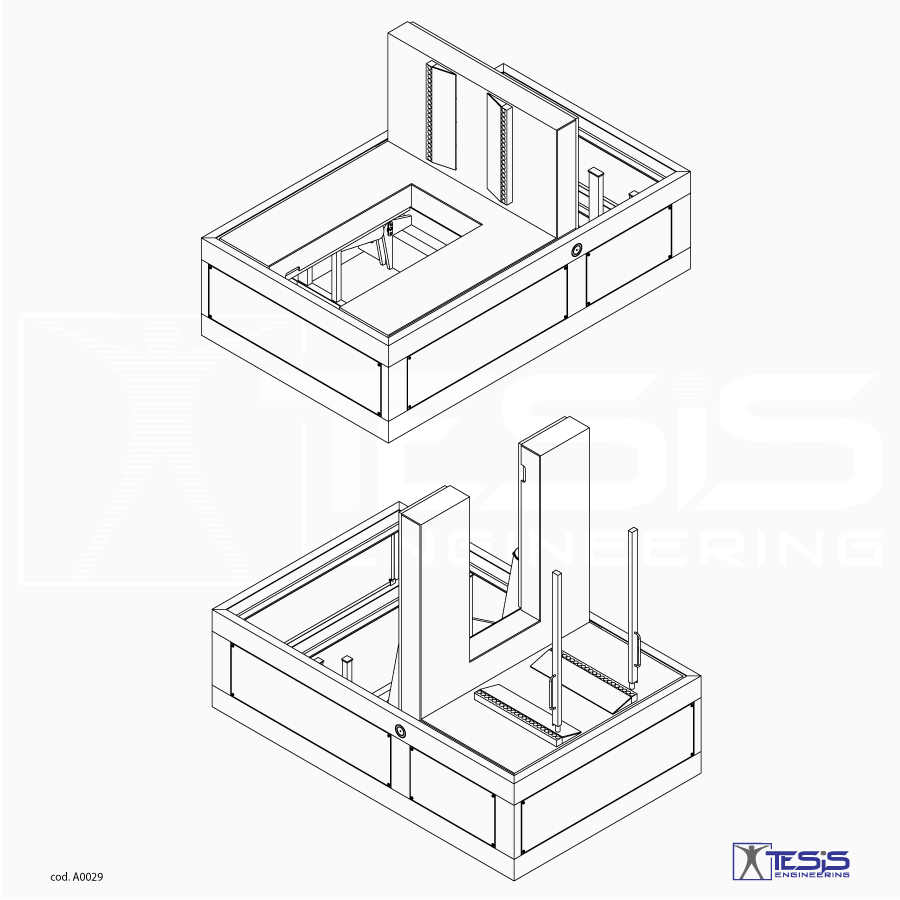

A0029

L93-TRN-TRC-06-154-102-84-90
90° Tilter with cradle platform and removable hold devices
Button

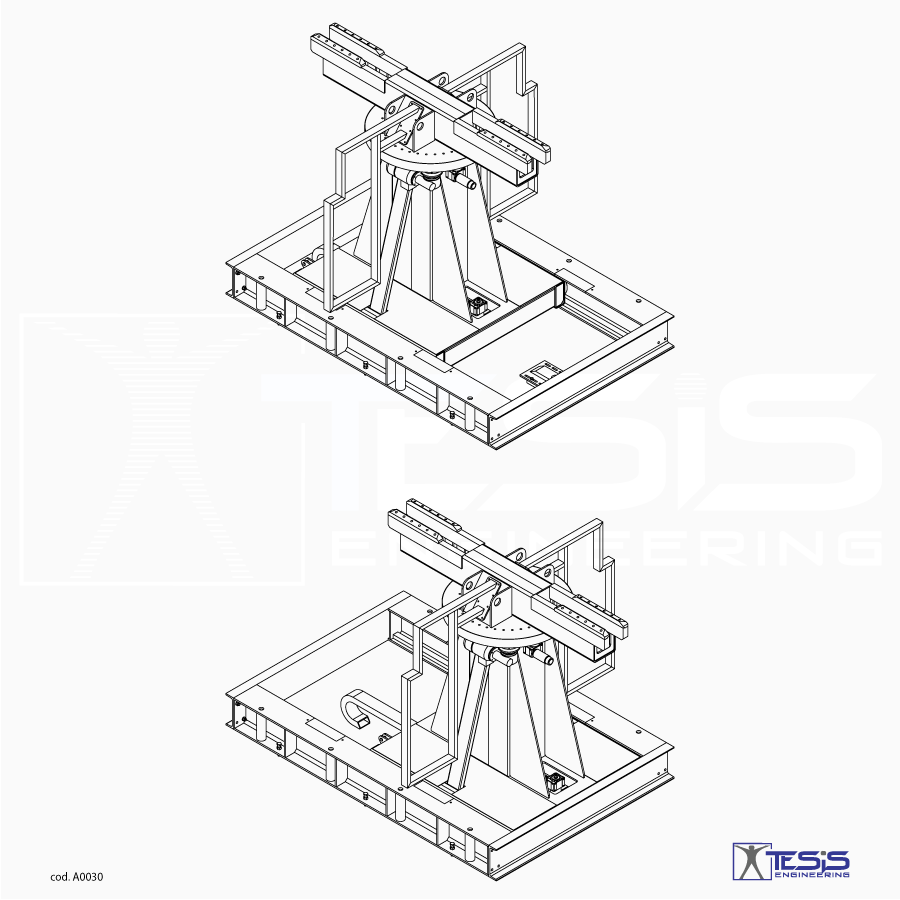

A0030

COIL LOADING CAROUSEL
Button

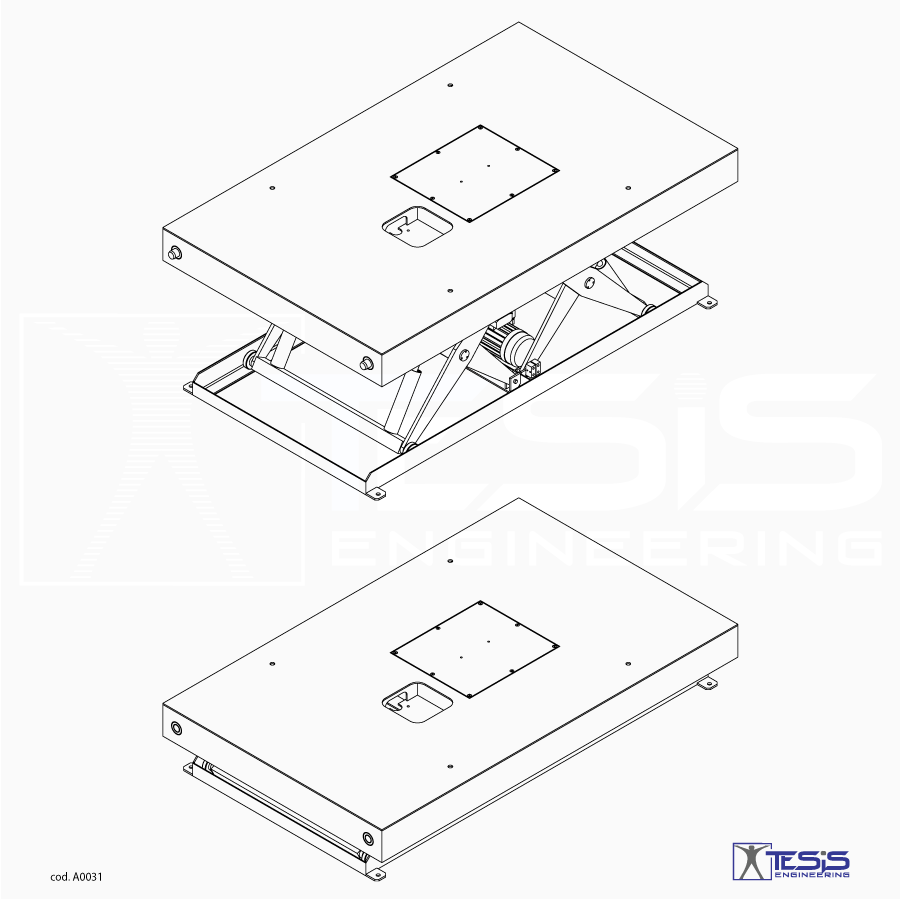

A0031

XL-BKO-30-260-160-60-40
Scissor lift table: load capacity 300 kg; size 2600x1600mm; vertical travel 600mm; H min. 400mm.
Button

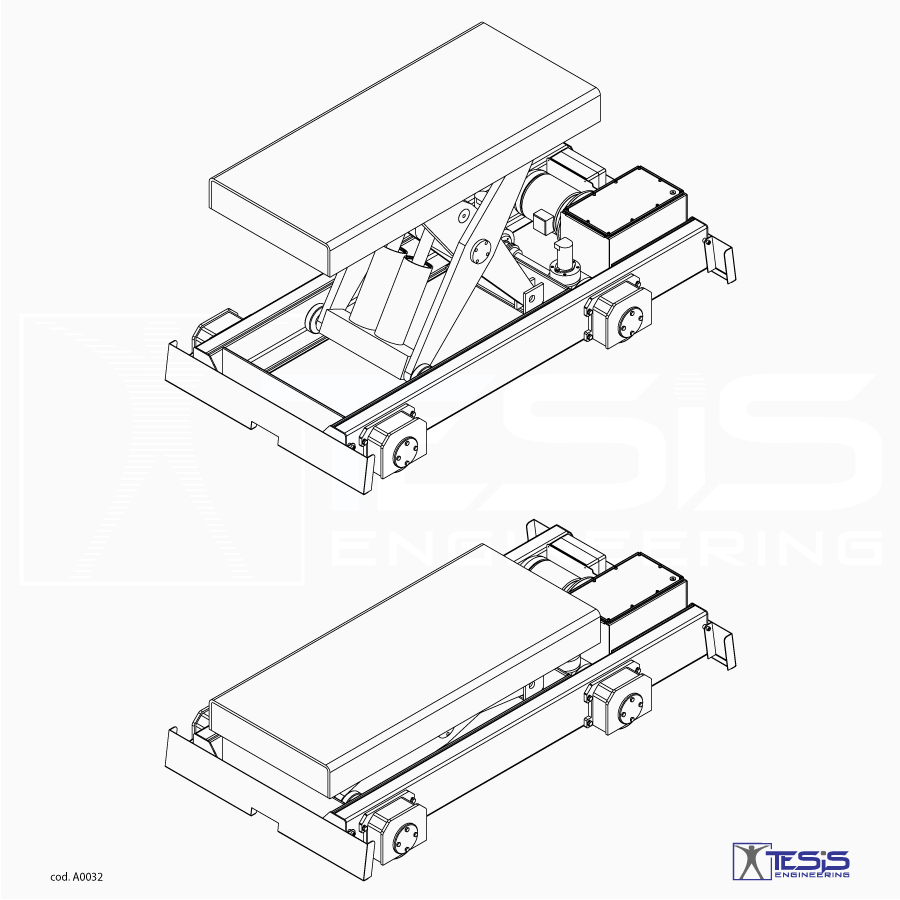

A0032

XN-TO-60-150-67-65-45
Self-propelled lift table with hydraulic traverse: load capacity 6,000 kg; size 1500x670mm; vertical travel 650mm; Hmin: 450mm.
Button

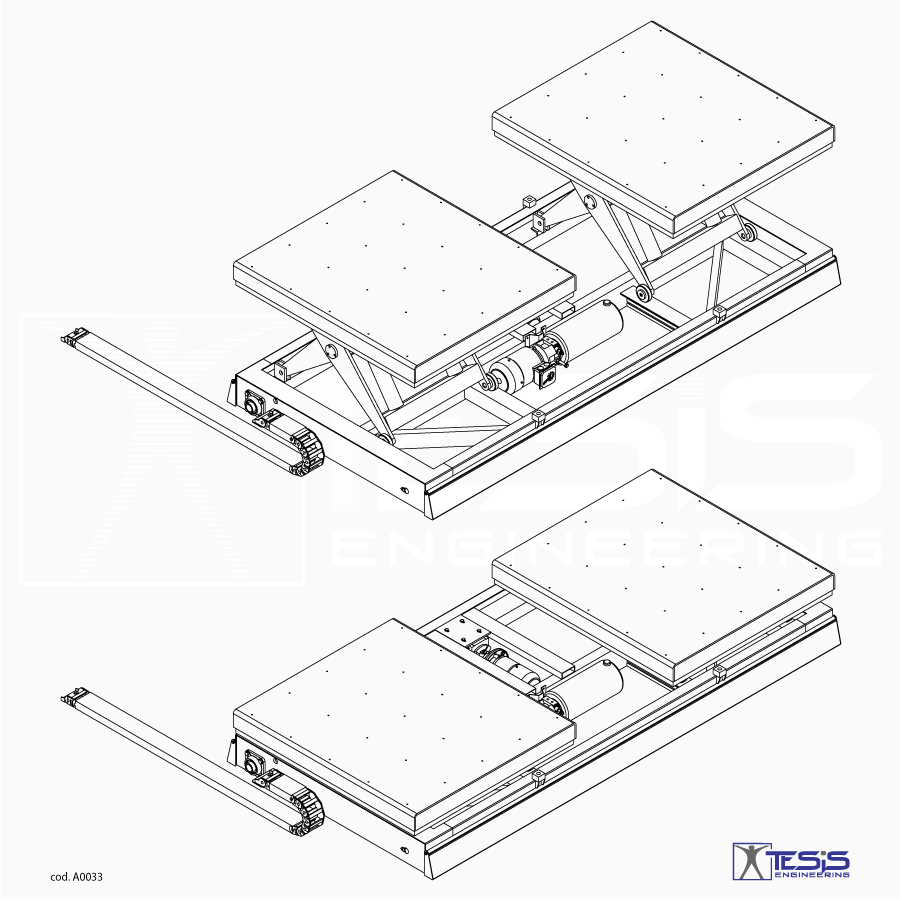

A0033

2XN-TE-25 25-140-125-59-43-NE
Self-propelled double platform lift table with electromechanical traverse: load capacity 2500 kg 2500 kg; size 1400x1250mm; vertical lift 590mm; H min. 430mm.
Button

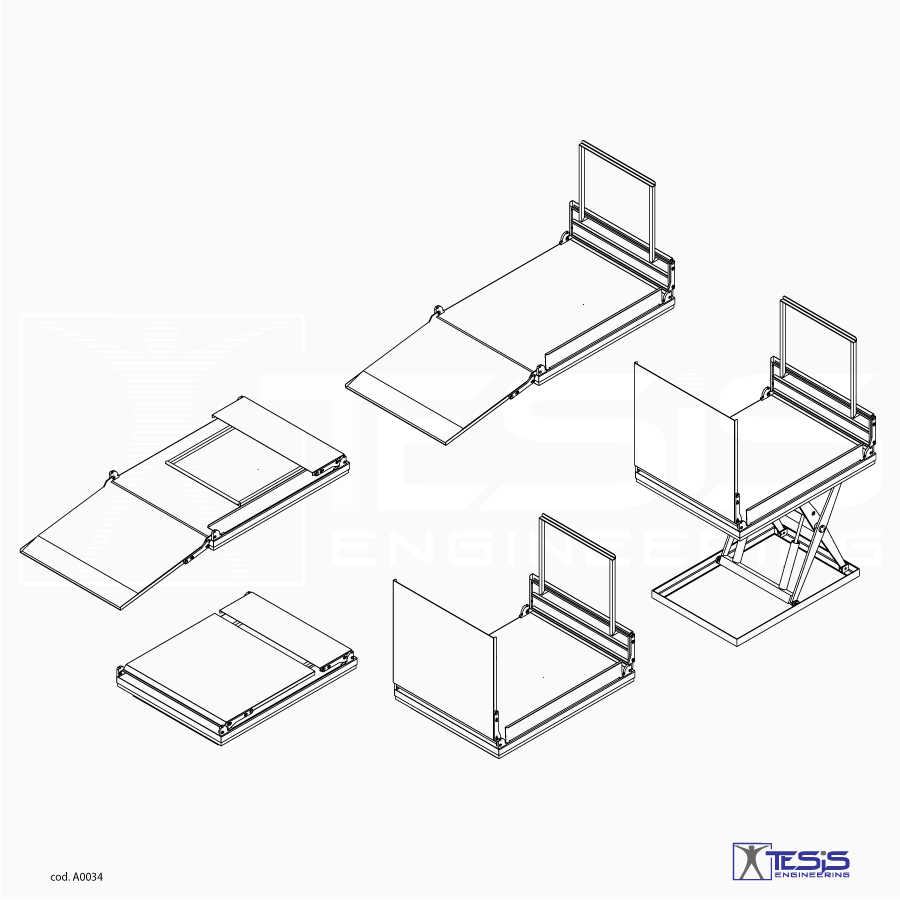

A0034

XN-ORIGAMI-2-130-100-85-15
Fold down Origami scissor platform lift: load capacity 200kg; dim.1300x1000 mm; vertical travel 850mm; H min. 150mm.

Button

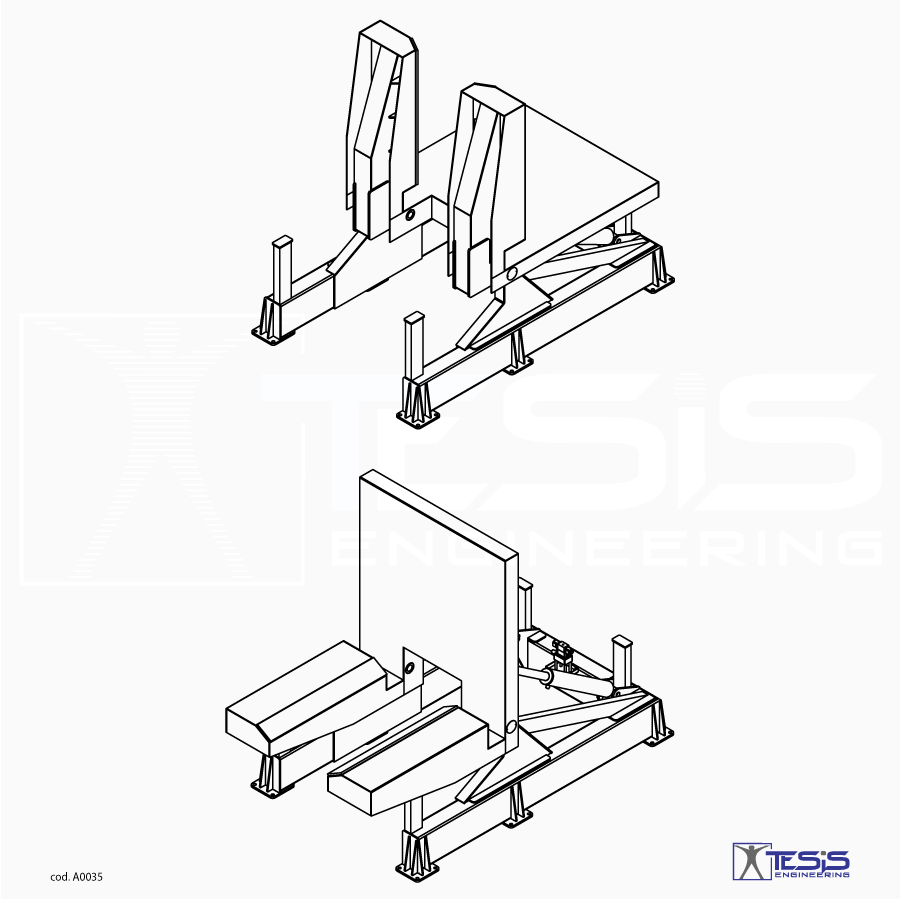

A0035

L90C-35-150-120-150
90° coil upender
Button

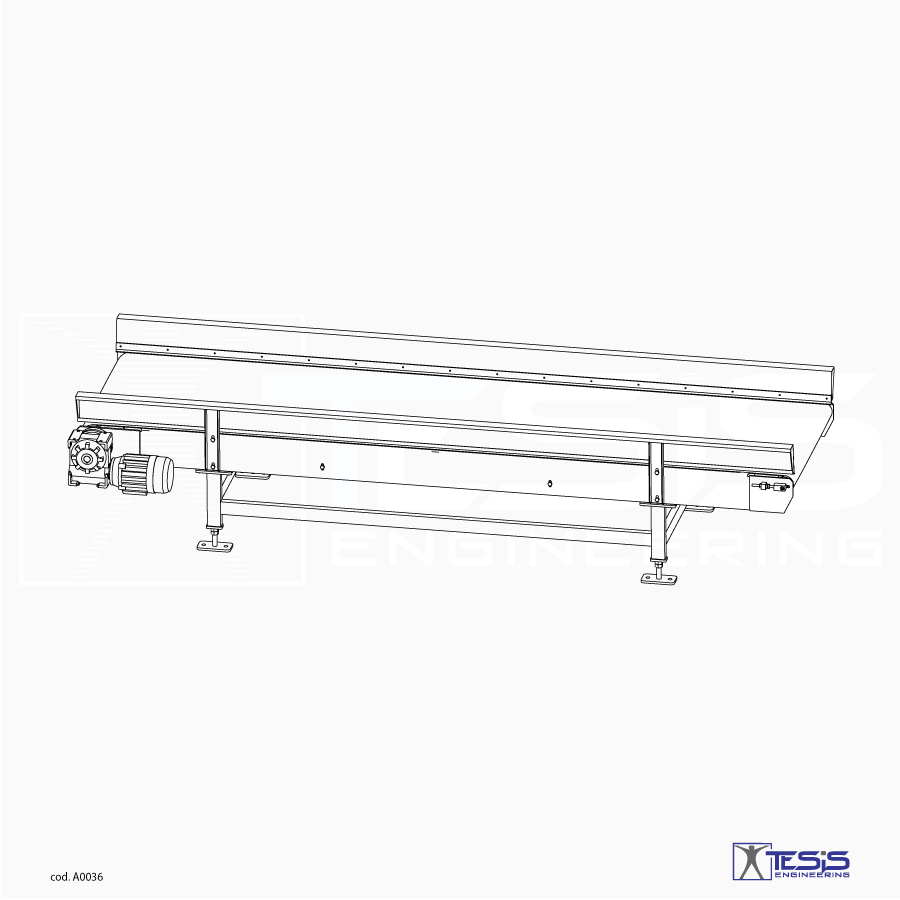

A0036

TRN-01-322-80-55
Belt conveyor
Button

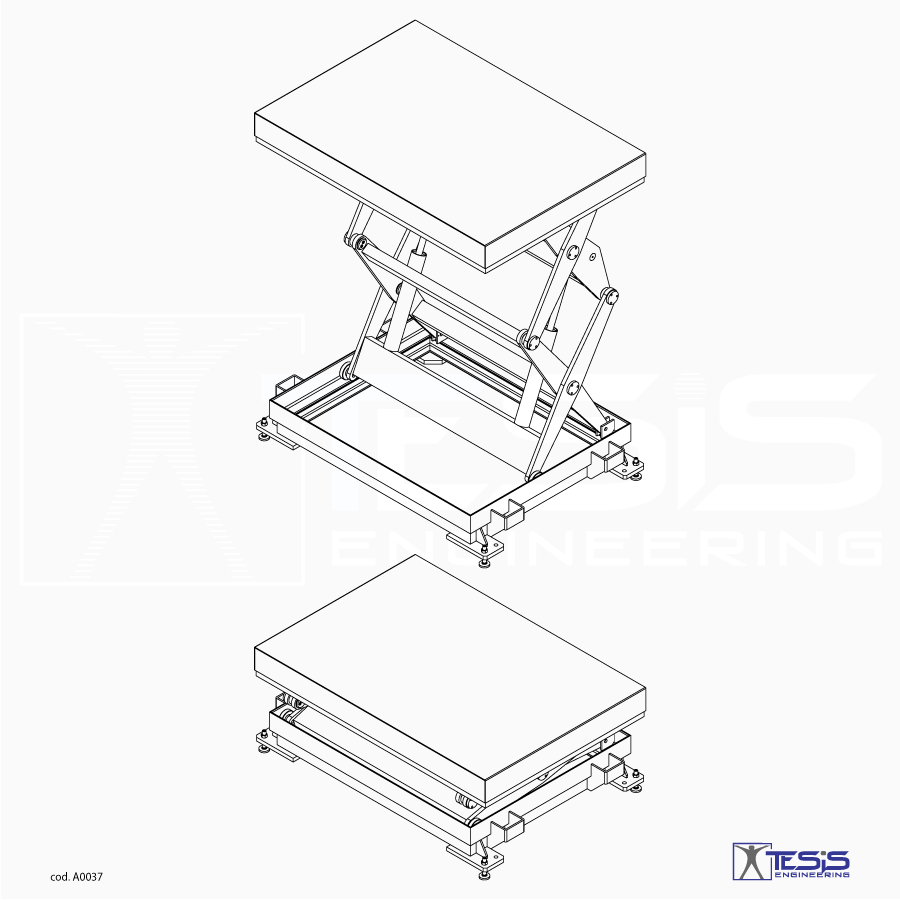

A0037

XH-20-125-180-150-69
Double scissor lift table: load capacity 2,000 kg; size 1250x1800mm; Vertical travel 1500mm; H min. 690mm.
Button

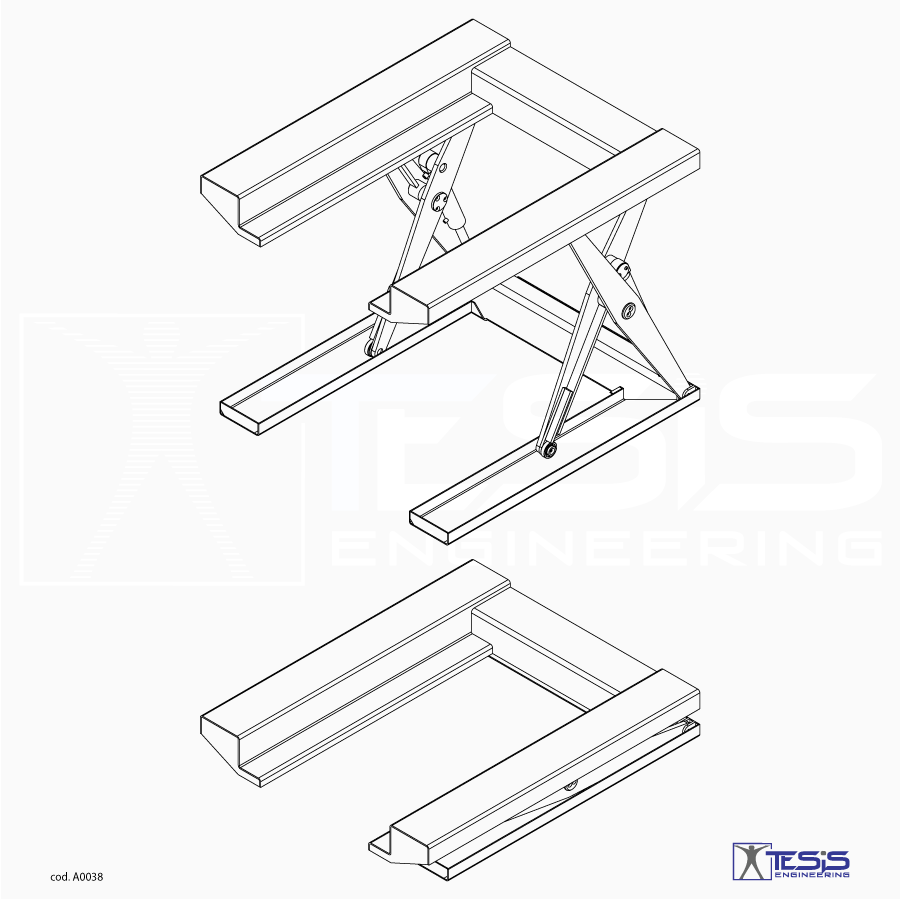

A0038

XB-10-153-129-100-8
Pallet scissor lift table with ''U'' top load capacity 1.000 kg; size 1530x1290mm; vertical travel 1000mm; H min. 80mm.
Button

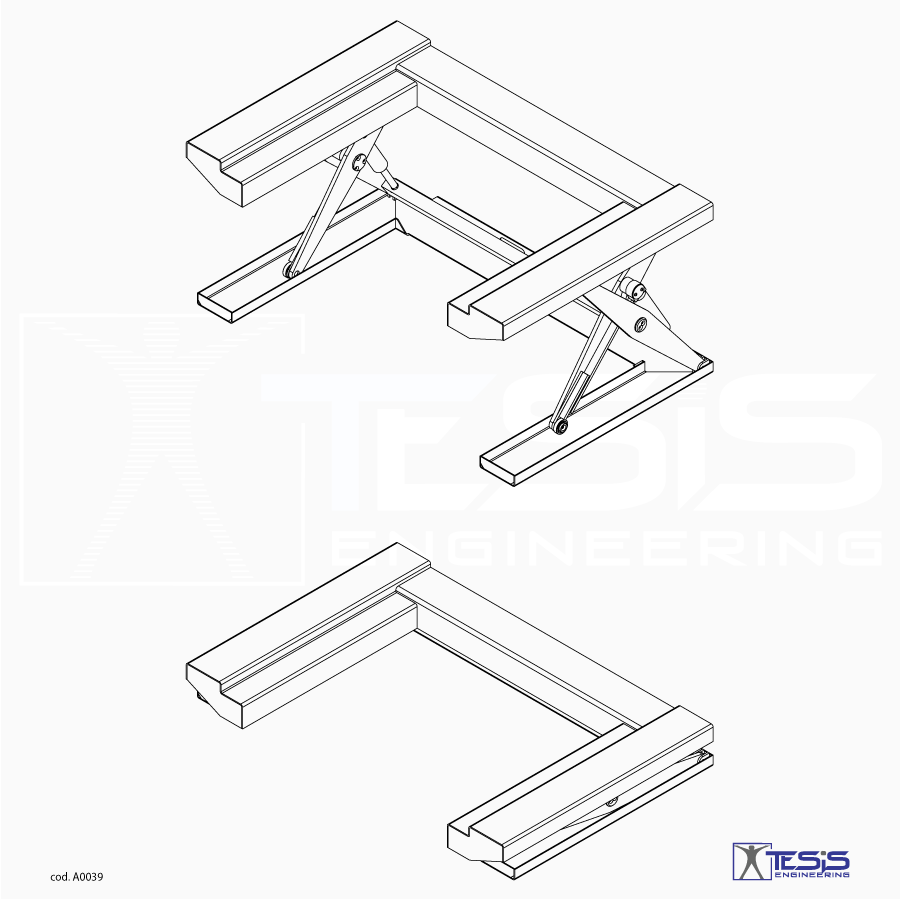

A0039

XB-12-132-200-70-17
Pallet scissor lift table with ''U'' top: load capacity 1,200 kg; size 1320x2000mm; vertical travel 700 mm; H min 170 mm.
Button

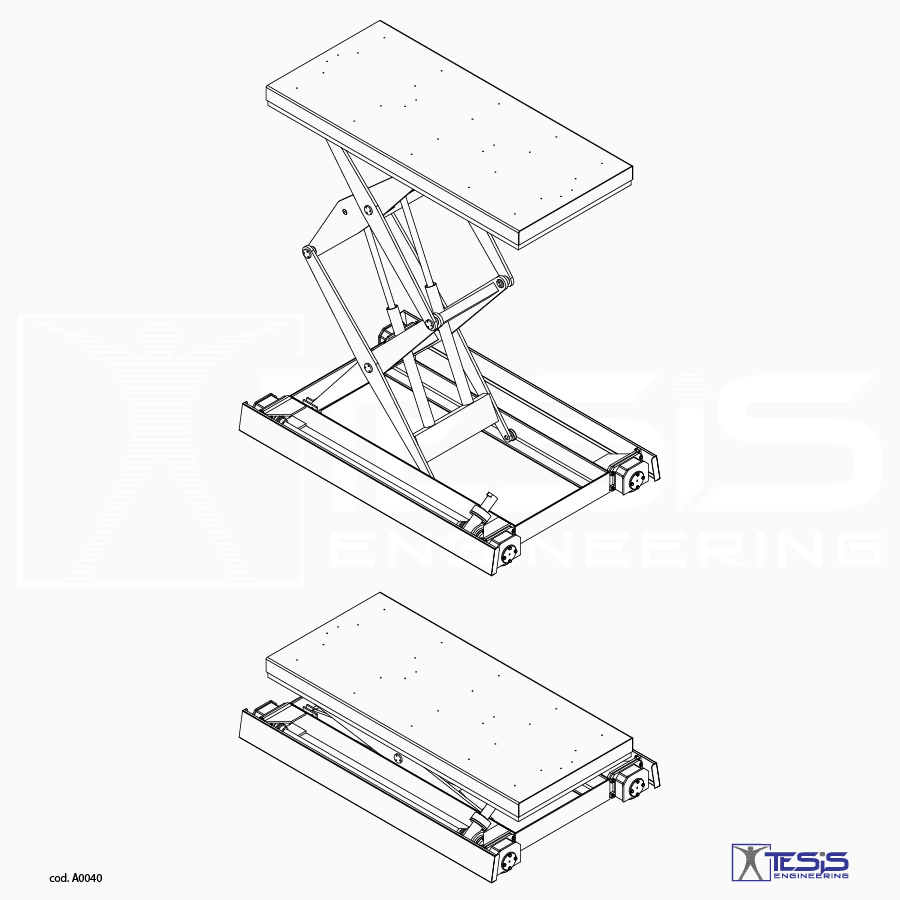

A0040

XH-TO-10-220-100-200-51
Self-propelled double scissor lift platform with lateral hydraulic traverse: load capacity 1,000 kg; size 2200x1000mm; vertical travel 2000mm; H min. 510mm;

Button

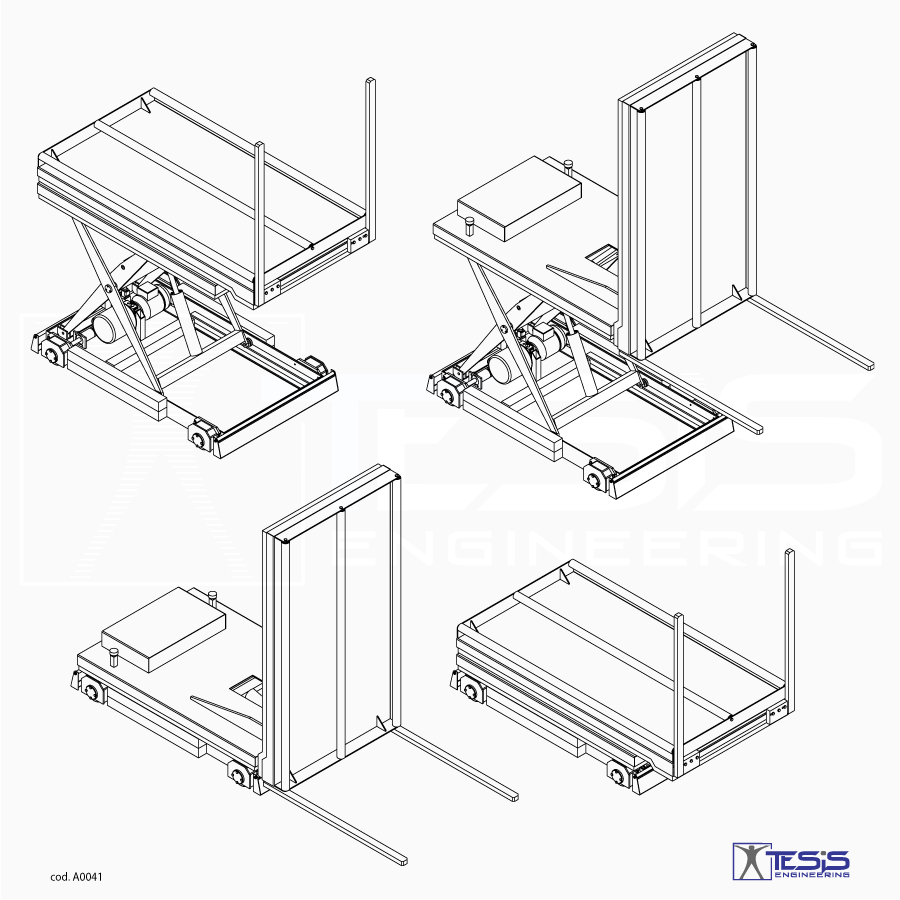

A0041

XN-TO-PRB-2-185-100-100-50
Self-propelled scissor lift and tilt table with adjustable forks: load capacity 200 kg; size 1850x1000mm; vertical travel 1000mm; H min. 500mm

Button

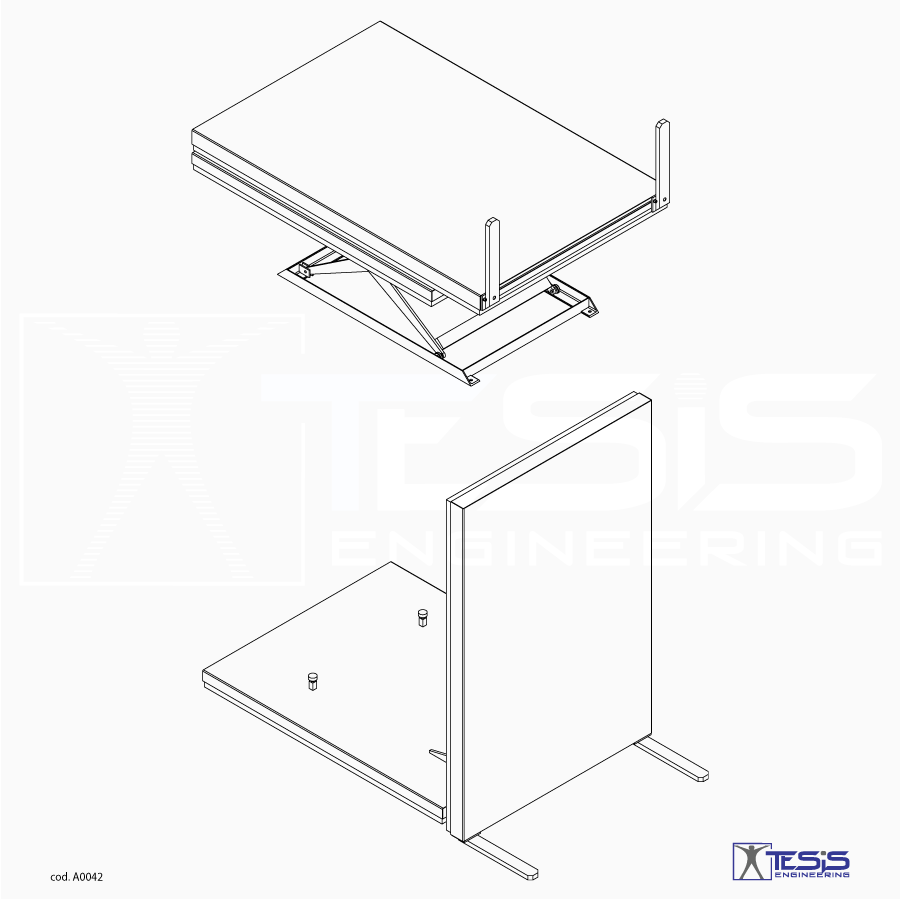

A0042

XN-PRB-2-230-150-50-40
Scissor lift and tilt table with adjustable forks: laod capacity 200 kg; size 2300x1500mm; vertical travel 500 mm; H min. 400mm.

Button

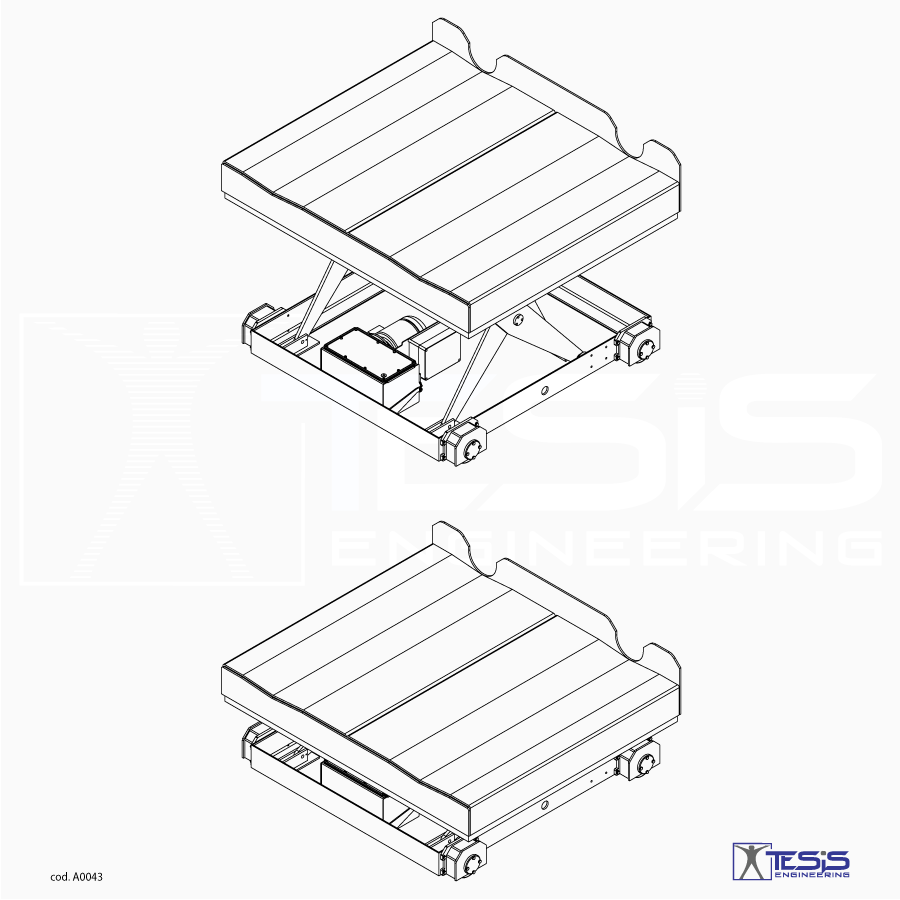

A0043

XN-TM-2PC-10-130-151-47-47
Mobile lift table with shped top platform: load capacity 1,000 kg; size 1300x1510mm; vertical travel 470mm; H min 470 mm.
Button

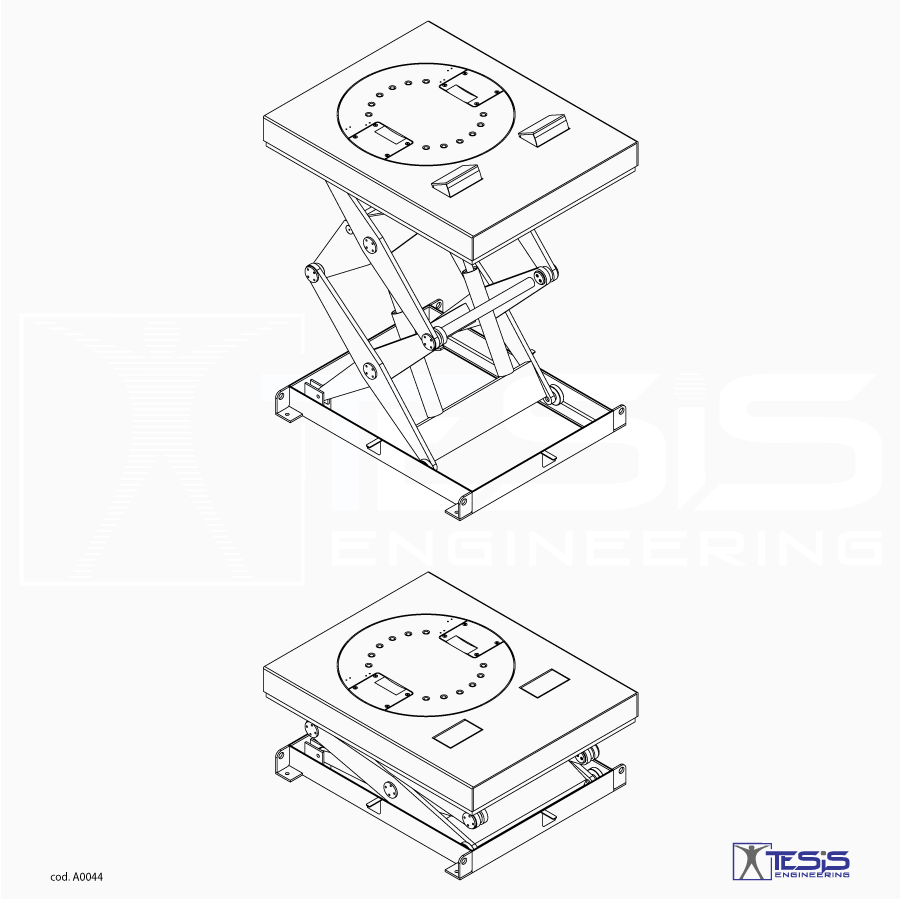

A0044

XH-TGE-FLB-40-170-135-135-70
Double scissor lift table with powered turn table and retractable coil chocks: load capacity 4,000 kg; size 1700x1350mm; vertical travel 1350 mm; H min. 700mm.
Button

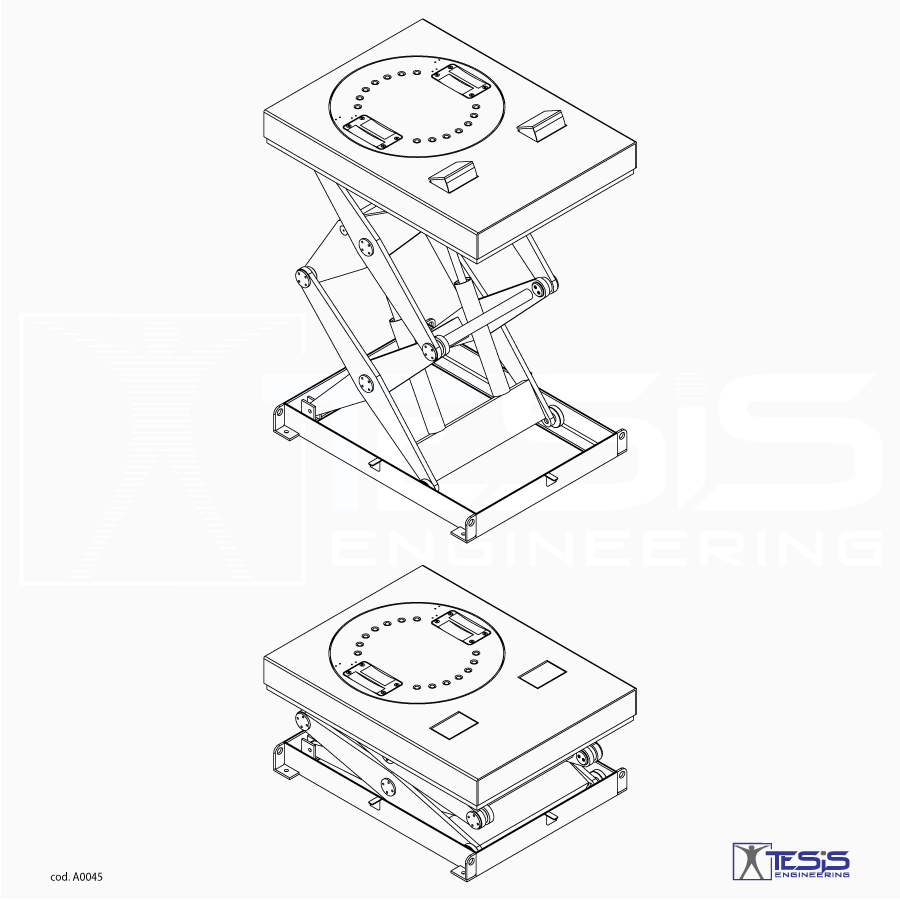

A0045

XH-TGE-FLB-40-160-120-135-7
Double scissor lift table with powered turn table and retractable coil chocks: capacity 4,000 kg; size 1600x1200mm; stroke 1350mm; H min. 700mm.
Button

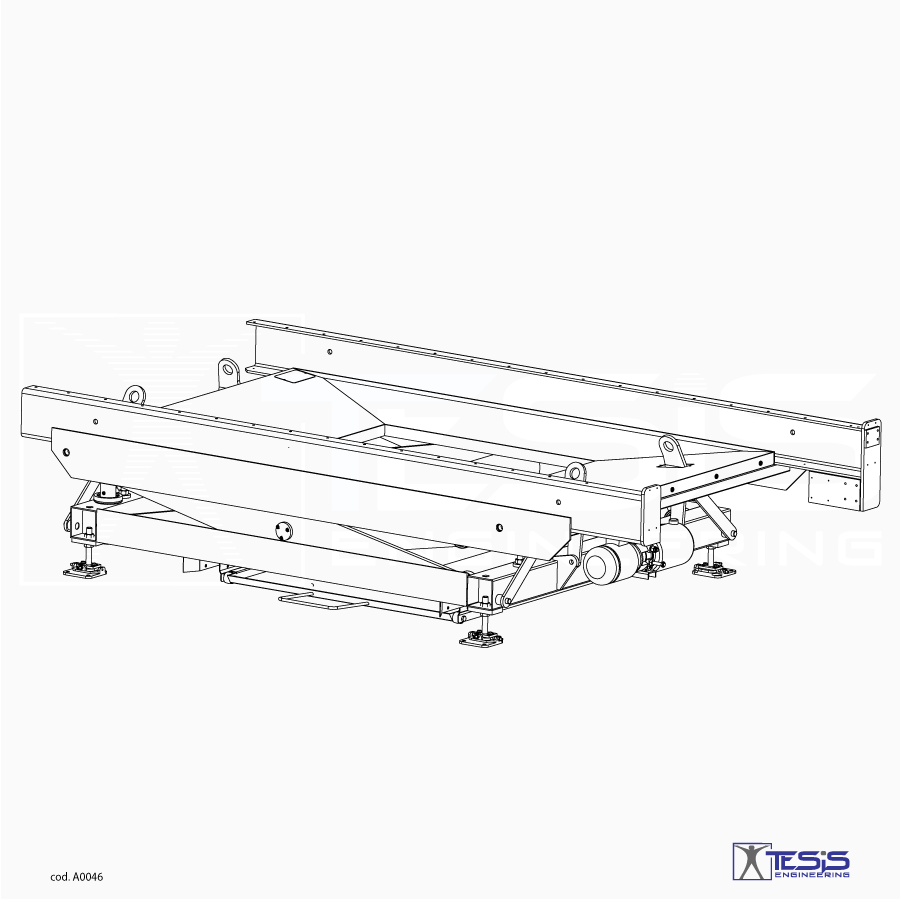

A0046

XN 3015
Pallet changer lift table with hopper and scrap removal trolley

Button

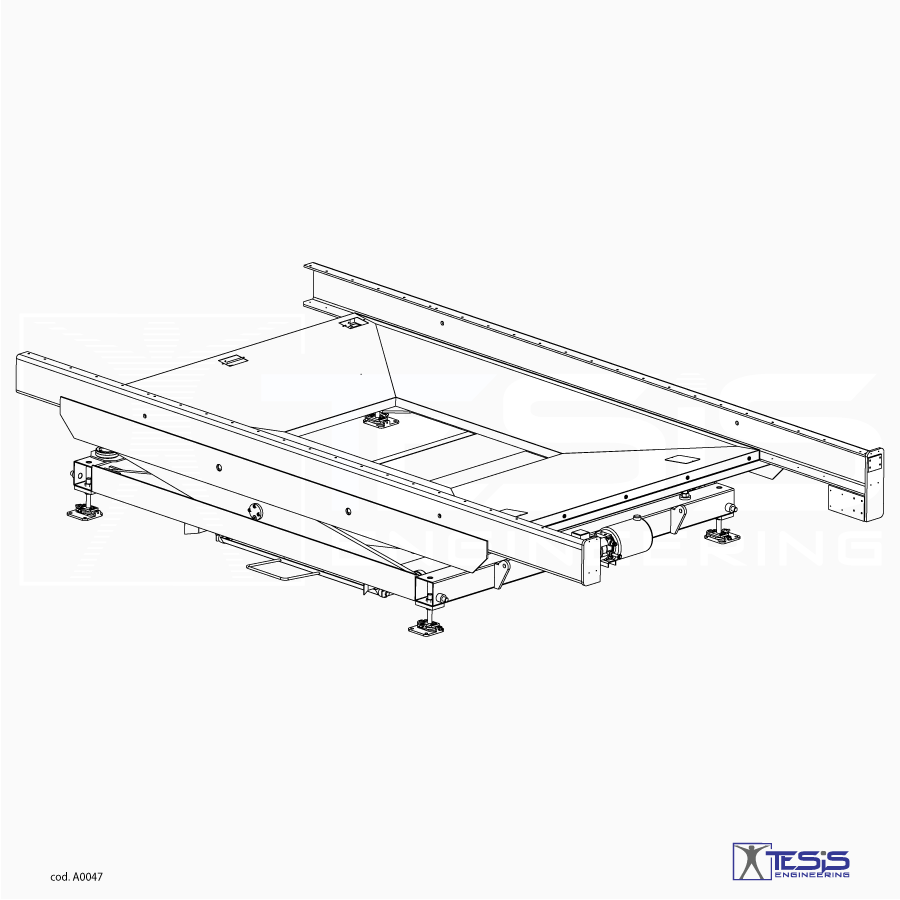

A0047

XN-4020
Pallet changer lift table with hopper and scrap removal trolley
Button

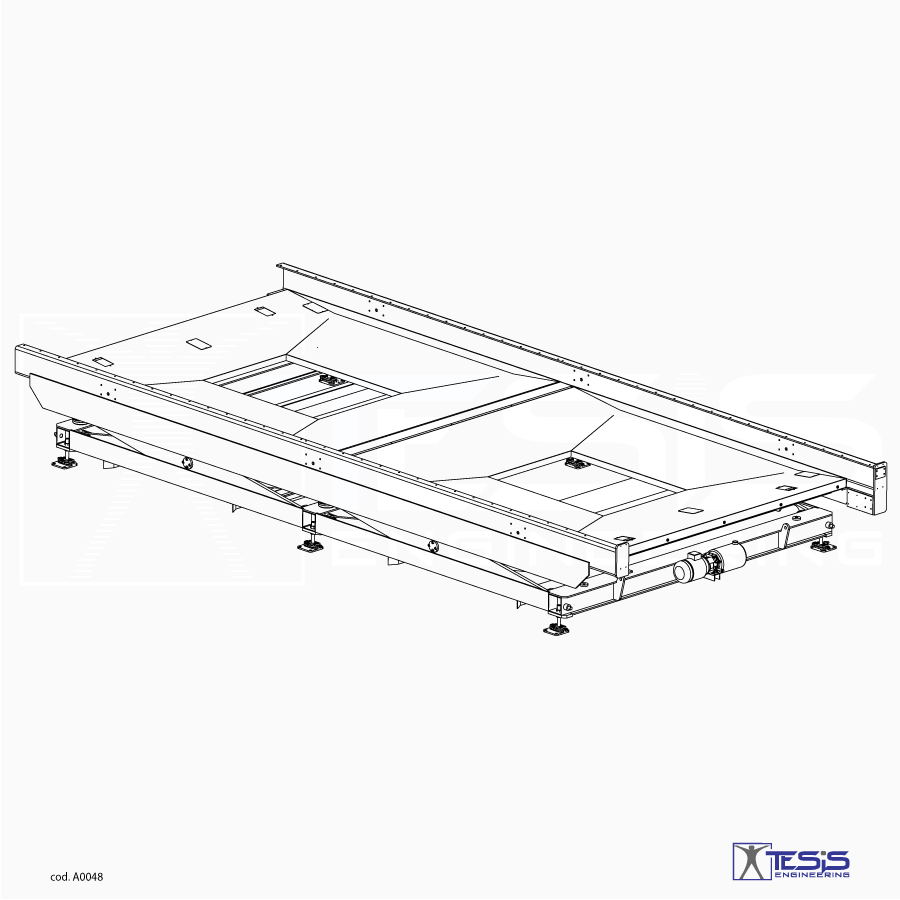

A0048

XL-6025
Pallet changer lift table with double hopper and scrap removal trolley
Button

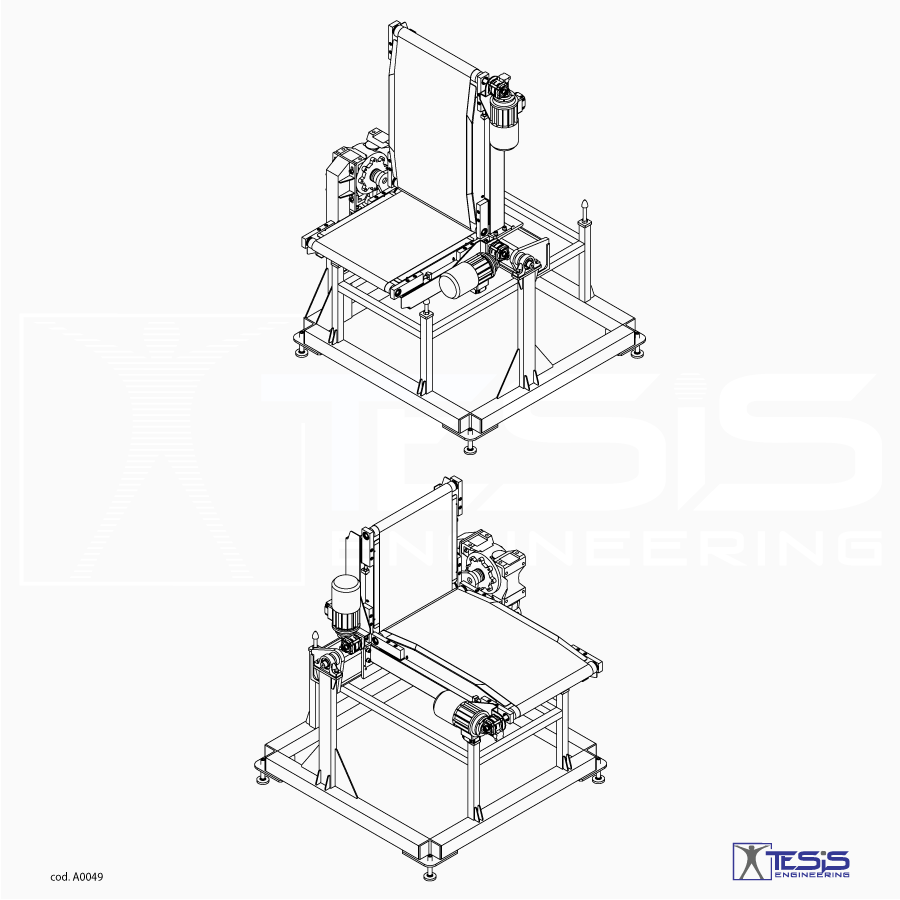

A0049

L90-2TRN-1-60-50-90-90
90° tilter with conveyor belts
Button

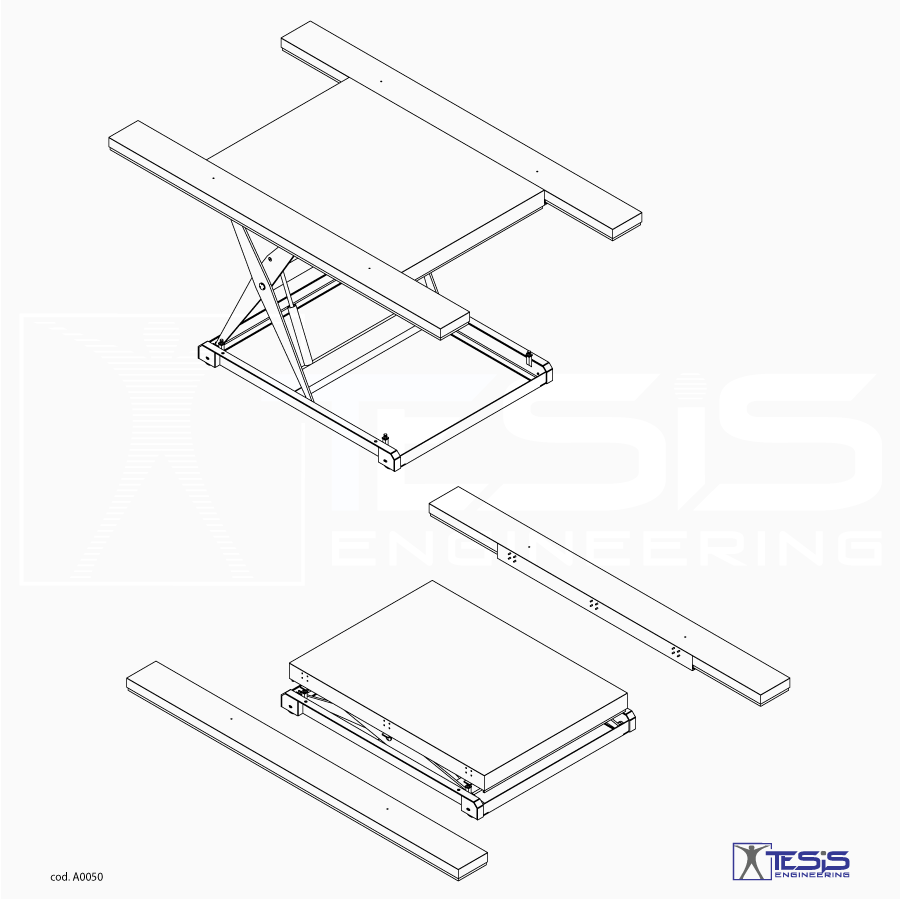

A0050

XN-TM-15-300-310-200-206-56
Mobile scissor lift table with removable side beams: load capacity 1,500 kg; size 3000x3100mm; vertical travel 2060mm; H min. 560mm.
Button

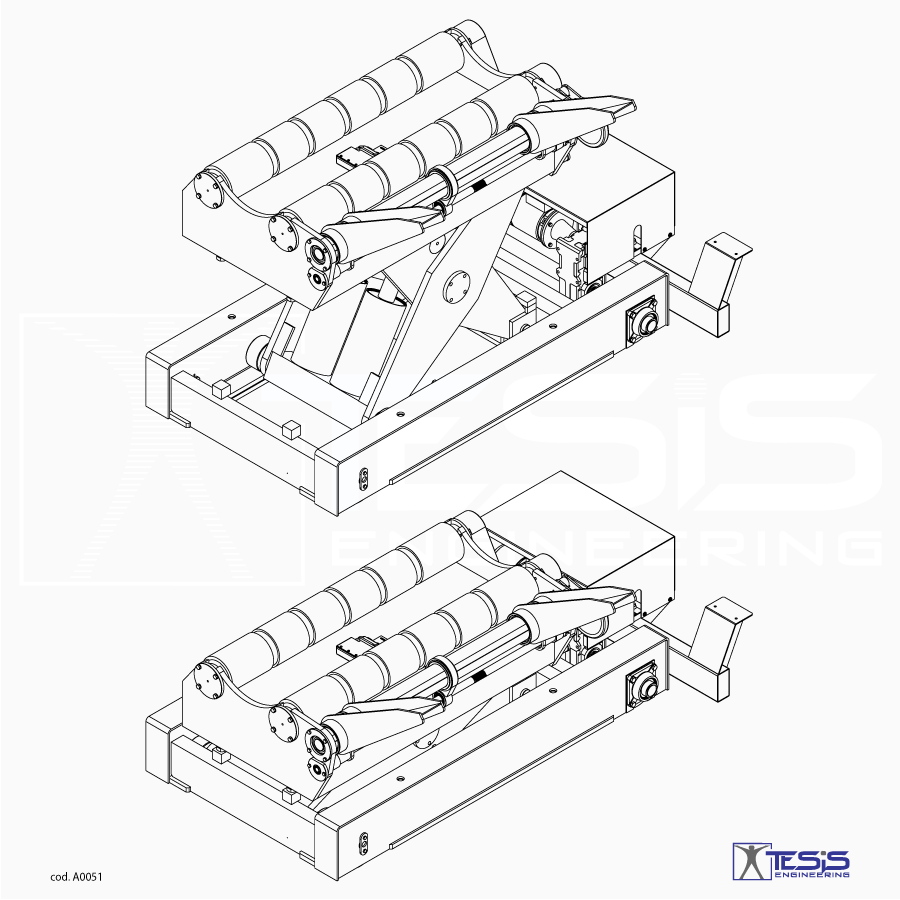

A0051

XN-TE-PRU-BO-200-165-87-73-83
Self-propelled coil trasnfer car with motorized roller top and powered coil stop devices: capacity 20,000 kg; size 1650x870mm; stroke 730mm; H min. 830mm.
Button

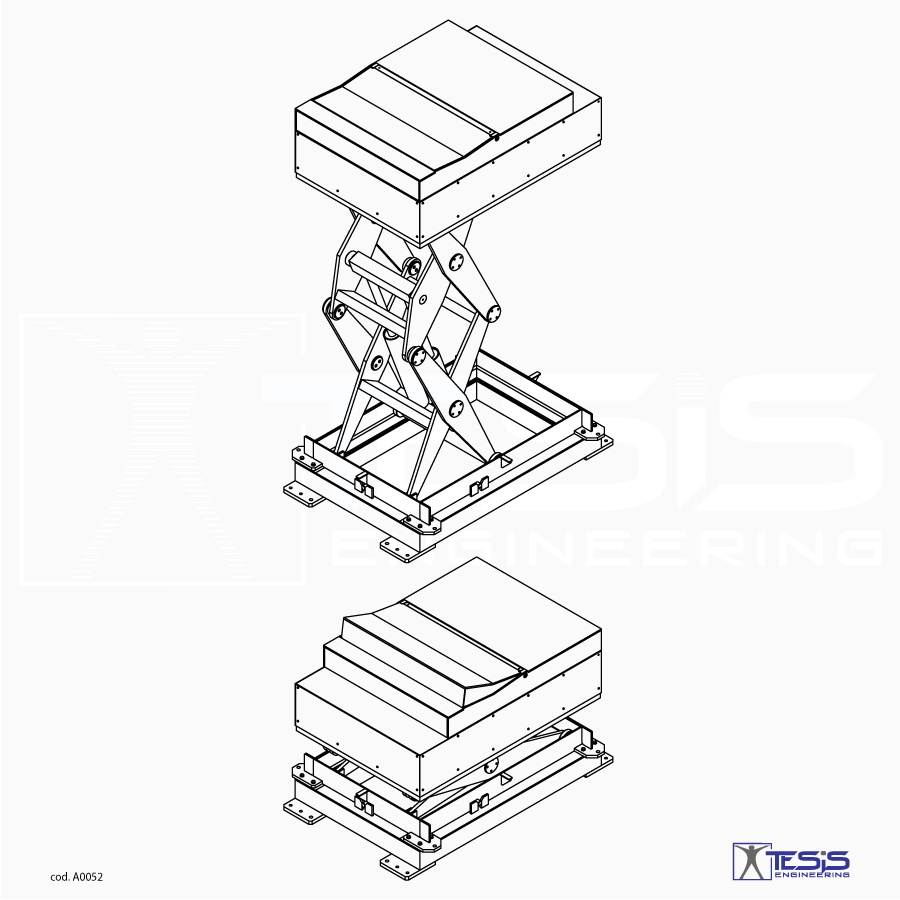

A0052

XH-PTO-40-160-110-180-110
Double scissor lift table with powered shifting platform and tiltable cradle top: load capacity 4,000 kg, dim. 1600 x 1100, vertical travel 1800 mm, H min. 1100mm.

Button

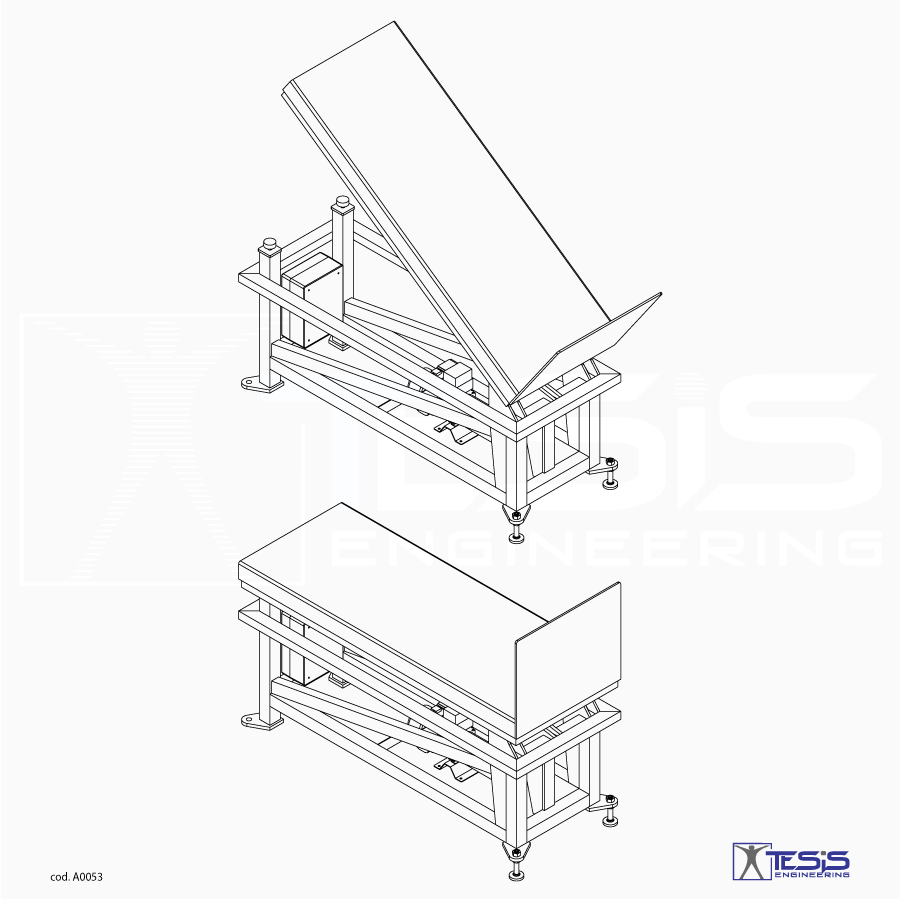

A0053

L35-6-160-60-40-70
35° tilt table: load capacity 600 kg. size 1600 x 600 mm, minimum height 700 mm.
Button
A0054

S1C-2-65-55-75-10
Column lifter

Button

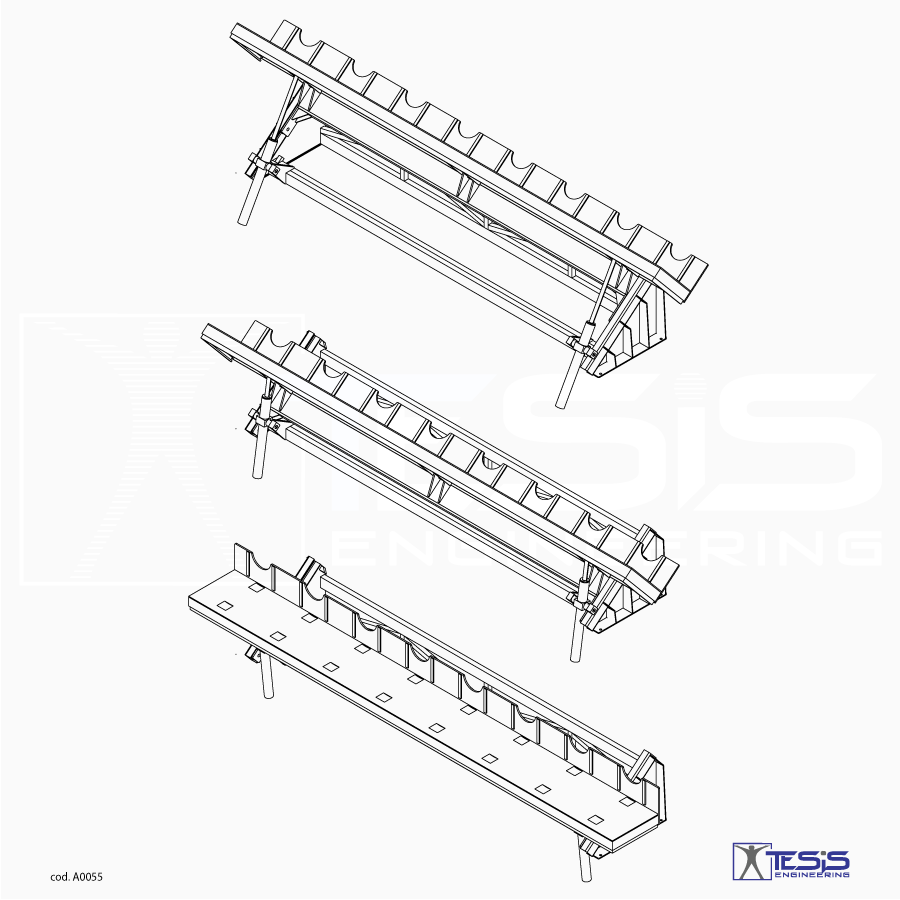

A0055

L50L-PTO-55-552-60-30-60
50° Upender with shifting platform: load capacity 3,000 kg, size A x B 2.780 x 600 mm + A x C 2.780 x 300 mm, H. min 600 mm.
Button

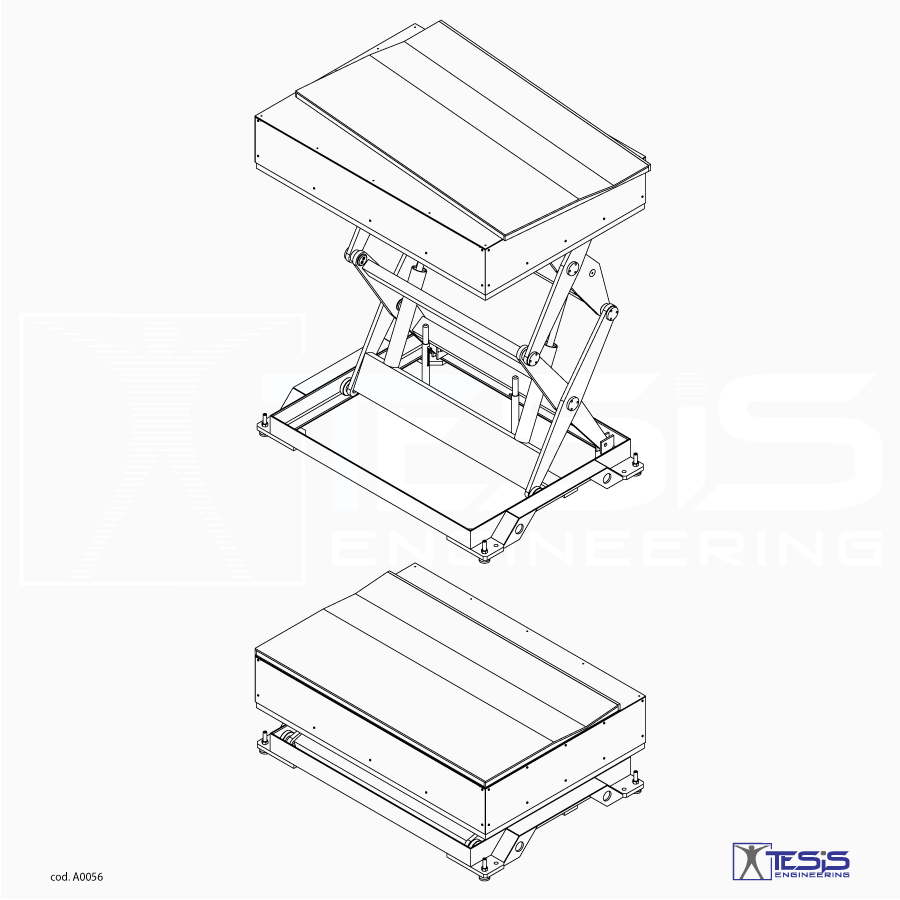

A0056

XH-PTM-PGR-PTTM-20-125-180-150-69
Scissor lift for roll handling. cradle platform top with 3 manual movements: longitudinal shifting, transversal shifting and rotation: load capacity 2,000 kg; size 1,250 x 1,800mm; vertical travel 1,500mm; H min 690 mm.

Button

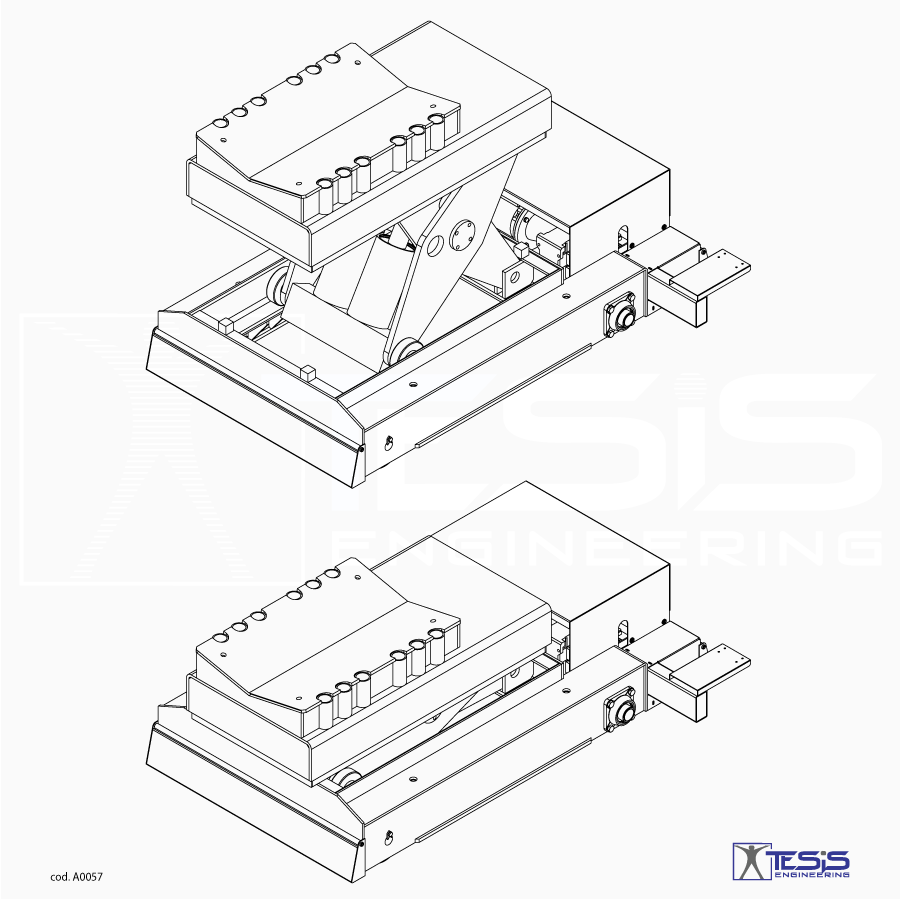

A0057

XN-TE-100-127-66-55-69
Self-propelled coil transfer car with cradle top: load capacity 10,000 kg; size 1,270 x 660mm; vertical travel 550mm; H min. 690mm.
Button

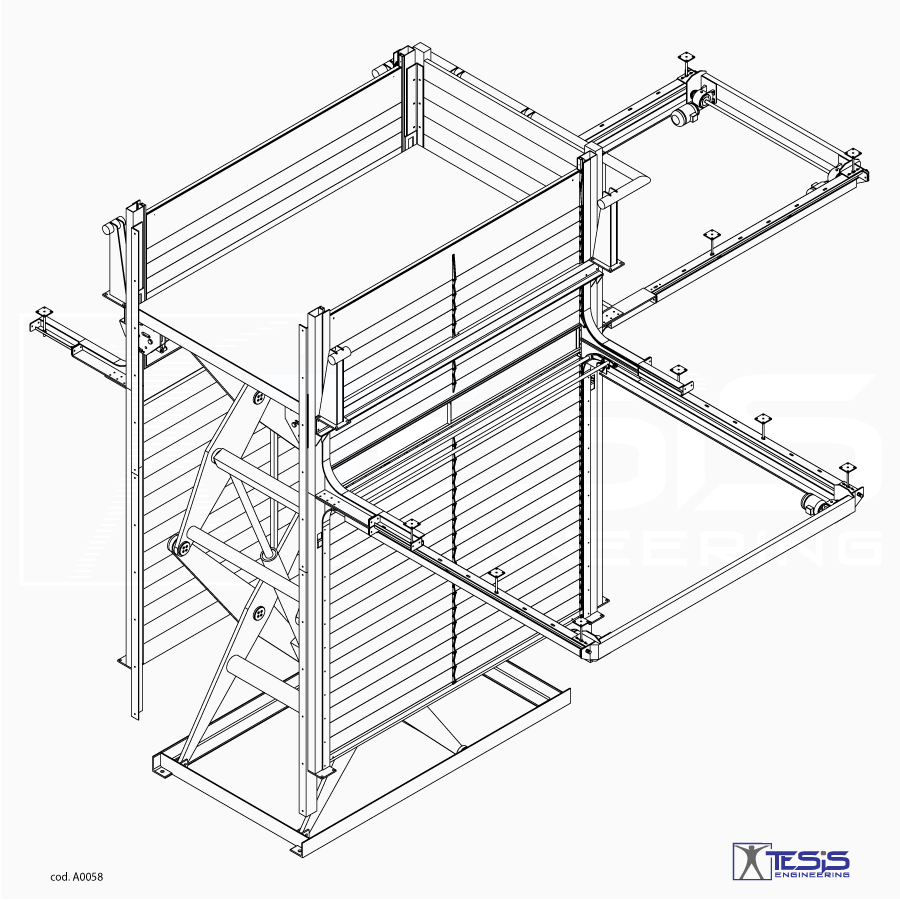

A0058

XH-MC-70-400-243-440-120
Goods platform lift with shutter enclosure: load capacity 7.000 kg, dim. 4,000 x 2,430 mm, vertical travel 4,000 kg, H min. 1,200mm.

Button

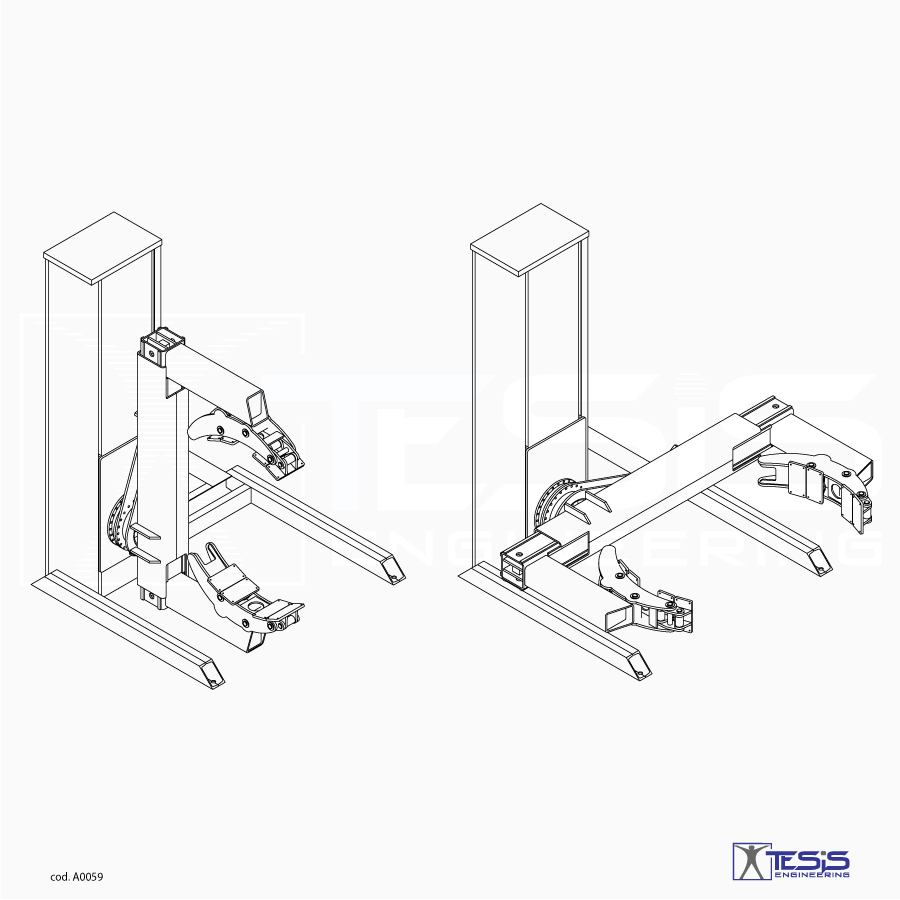

A0059

S1C-R94-PZ-10-55
360° drum turner
Button

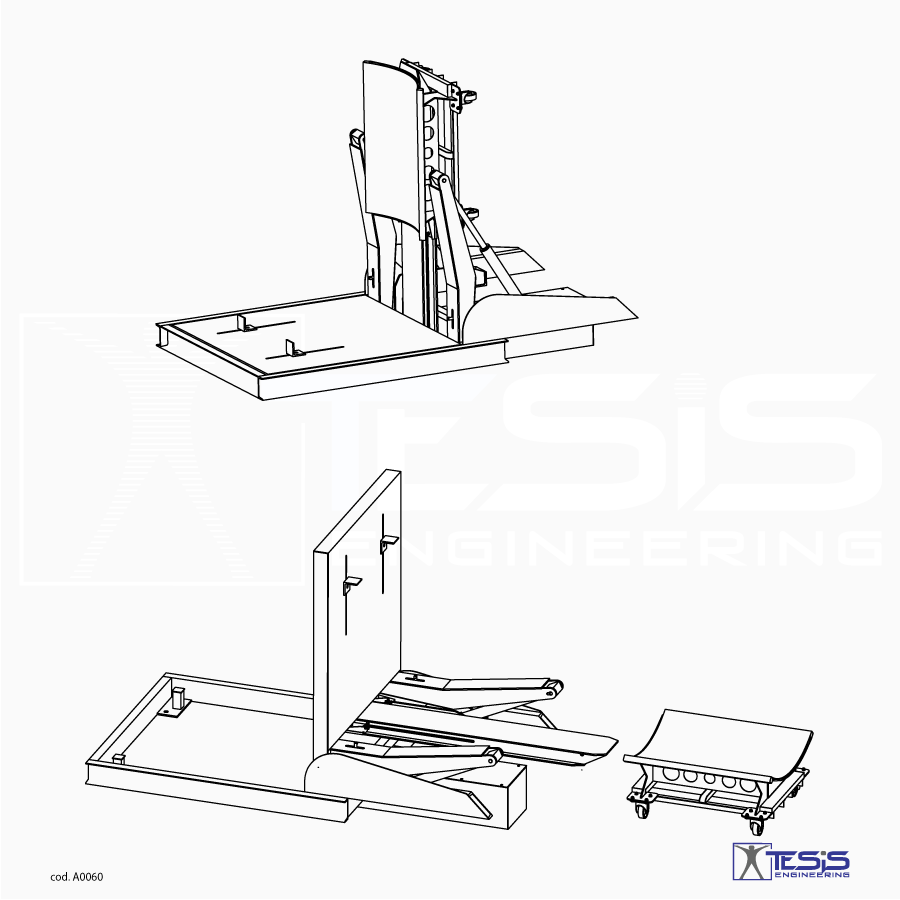

A0060

L90L-10-180-150-0-50
90° tilter with trolley

Button
